Attachments & Lift

Hydraulic Systems

Hydraulic Cylinders

Kramp - CCND4025MI - Compact Cylinder

Kramp - CCND4025MI - Compact Cylinder

Kramp - CCND4025MI - Compact Cylinder

Kramp - CCND4025MI - Compact Cylinder

Kramp - CCND4025MI - Compact Cylinder

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

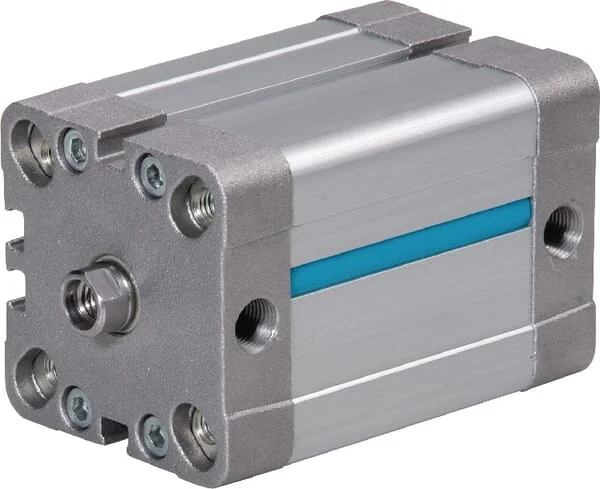

Kramp - CCND4025MI - Compact Cylinder

Kramp - CCND4025MI - Compact Cylinder

€68.06

(Excl. VAT)

Price

(Excl. VAT)

€68.06

Number of products

Kramp

Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand

Type

Double acting

Unit

Each

NWidth

57,2 mm

Stroke

25 mm

Min. length

77 mm

Damping type

Flexible - both sides

ISO standard

21287 228/1

Rod material

Stainless steel AISI 420

BRod diameter

12 mm

Bore diameter

40 mm

Piston diameter

40 mm

Sealing material

Polyurethane

Cylinder material

Aluminium

Max. working pressure

10 BAR

Min. working pressure

1 BAR

Rod surface treatment

Anodised

Cylinder head material

Die-cast alloy

DMounting length - rod connection

12 mm

Mounting type - cylinder connection

Thread

Cylinder length without rod and head

45 mm

Mounting thread type - rod connection

Metric

G,lHousing front mounting holes length

15 mm4,2 mm

MHousing front mounting holes diameter

9 mm

OCylinder head mounting holes distance

38 mm

Housing side mounting holes thread type

G

AMounting thread diameter - rod connection

M8

PHousing side mounting holes thread diameter

1/8 Inch

EHousing front mounting holes thread diameter

M6

Mounting diameter (width) - cylinder connection

6 mm

Theoretical force at 6 bar pressure - advancing

754 N

Theoretical force at 6 bar pressure - retracting

687 N

Mounting thread type - male/female - rod connection

Female

CMounting thread to cylinder head distance - rod connection

7 mm

Manufacturer

Kramp
