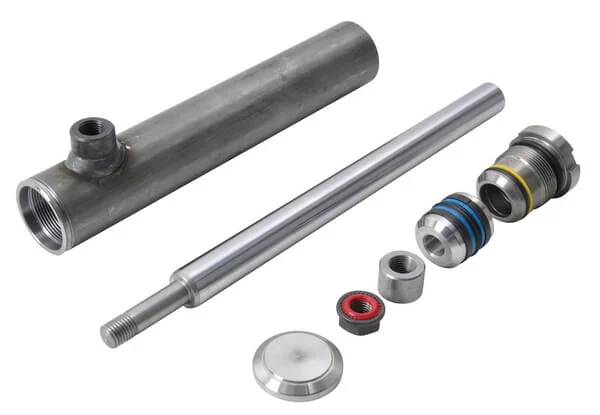

Kramp - D20301000 - Cylinder DIY D/A D20-30-1000
Kramp - D20301000 - Cylinder DIY D/A D20-30-1000
Kramp - D20301000 - Cylinder DIY D/A D20-30-1000
Kramp - D20301000 - Cylinder DIY D/A D20-30-1000
Kramp - D20301000 - Cylinder DIY D/A D20-30-1000

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Kramp - D20301000 - Cylinder DIY D/A D20-30-1000

Kramp - D20301000 - Cylinder DIY D/A D20-30-1000

€101.23

(Excl. VAT)

Price

(Excl. VAT)

€101.23

Product Description

The Kramp D20301000 is a genuine Kramp double-acting hydraulic cylinder, part of the DIY series, featuring a 30mm bore diameter and a 20mm rod diameter, with a substantial 1000mm stroke. Designed for general applications, this robust cylinder operates at a maximum working pressure of 200 bar. It provides a pushing force of 12.7 kN and a pulling force of 5.6 kN at 180 bar. The cylinder has an eye mounting type, thread connections (3/8 inch BSP), and a closed length of 1260mm. With a weight of 10.5 kg and an oil capacity of 0.7065 liters, it is suitable for a wide range of agricultural and industrial machinery.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,605 genuine Kramp spare parts.

Product Details

Brand
Kramp
Pros
Cylinder can be adjusted to any required length. Simple assembly
Unit
Each
AStroke
1000 mm
Includes
Complete self-assembly kit Assembly instructions Without fastenings
BMin. length
1143 mm
Rod diameter
20 mm
Rod material
Steel 20MnV6
Inside diameter
30 mm
Product details
Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Nominal pressure
200 BAR
Cylinder material
Stainless steel 52.0
EOutside diameter
40 mm
Head nut material
Cast iron
Max. piston speed
0,1 m/s
Guide ring material
Plastic
Application category
Do it yourself
Max. working pressure
250 BAR
Rod surface roughness
0,2 µm
Rod surface treatment
Chromated
Oil connection material
Steel
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
No mounting
Oil connection inside diameter
20 mm
FCylinder end to rod end distance
47 mm
Mounting type - cylinder connection
No mounting
Cylinder material tolerance class code
H10
CMounting thread diameter - cylinder connection
1/4 Inch
HOil connection centre to cylinder end distance - rod side
44 mm
Manufacturer
Kramp
