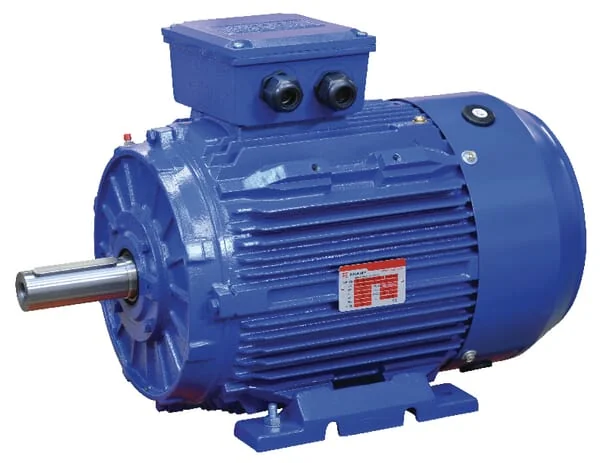

Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw

Kramp - EM180L4B3500IE3GKR - Electric Motor 22 Kw

€1,349.05

(Excl. VAT)

Price

(Excl. VAT)

€1,349.05

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,529 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
38.37 A
N1
1460 r/min
PN
22 kW
FKey
14 mm
Unit
Each
Swivel
M32 x 1,5
Torque
143.90 N·m
Weight
196.0 kg
cos φ
0.89
Phase ~
3
Voltage
400/690V 50Hz V
Frequency
50 Hz
Noise level
76 dB(A)

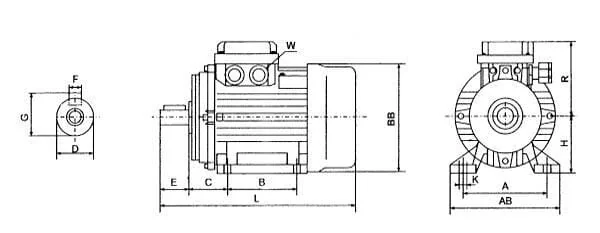

EShaft length
110 mm
LTotal length
725 mm
DShaft diameter
48 mm
Material housing
Cast iron
KDiameter bore foot
15 mm
BBDiameter fan cover
360 mm
GHeight shaft with key
42.5 mm
Moments of inertia (kgm²)
0,1943 kg·m²
Power factor cos phi 100%
0,87
ADistance bore foot width side
279 mm
BDistance bore foot length side
279 mm
ABDistance outside foot width side
348 mm
HDistance underside foot till centre shaft
180 mm
RDistance center shaft to end terminal box
259 mm
CDistance front motor till center first mounting hole
121 mm
Manufacturer
Kramp
