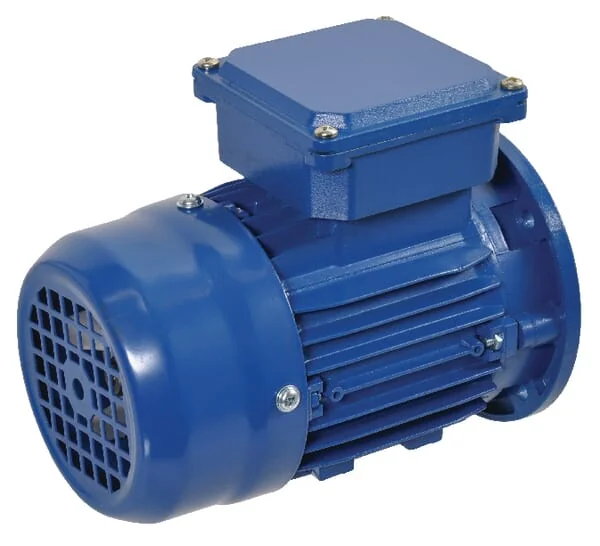

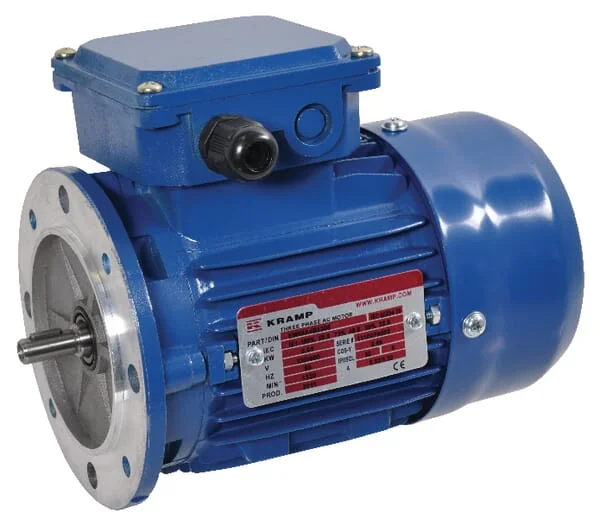

Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW
Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW
Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW
Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW
Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW
Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW

Kramp - EM80A4B5300IE2A - Electric Motor 0.55 KW

€102.90

(Excl. VAT)

Price

(Excl. VAT)

€102.90

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
N1
1420 r/min
PN
0.6 kW
FKey
6 mm
Type
Rotary current asynchronous motor
Unit
Each
Swivel
M20x1,5
Weight
8.1 kg
Benefits
High level of operational reliability
Efficiency
IE2
Frame size
80.0 mm
Properties
Up to and including size 90: aluminium housing From size 100: cast iron housing
Noise level
58 dB(A)
Construction
IM 2161
Power factor
0,7
Voltage type
AC
EShaft length
40 mm
LTotal length
290 mm
Rated current
1,5 A
Rated voltage
400 V
Cooling system
Air
Nominal torque
2,4 nm
Technical info
At 230/400 V: Y-configuration (300) At 400/690 V: Delta configuration (500)
DShaft diameter
19 mm
Rated frequency
50-50 Hz
Insulation class
55
Number of phases
3
Application range
Unit assembly Combination with worm gear reducer
Length of centring
3 mm
BBDiameter fan cover
163 mm
NDiameter of centring
130 mm
MPitch circle diameter
165 mm
POutside diameter flange
200 mm
XDiameter mounting holes
12 mm
Moments of inertia (kgm²)
0,0013 kg·m²
Insulation class according to IEC
F
RDistance center shaft to end terminal box
133 mm
Manufacturer
Kramp

Similar items you might like

  • Kramp

    Kramp - EM80A6B14300IE2A - Electric Motor 0.37 KW

    Kramp

    €103.03

  • Kramp

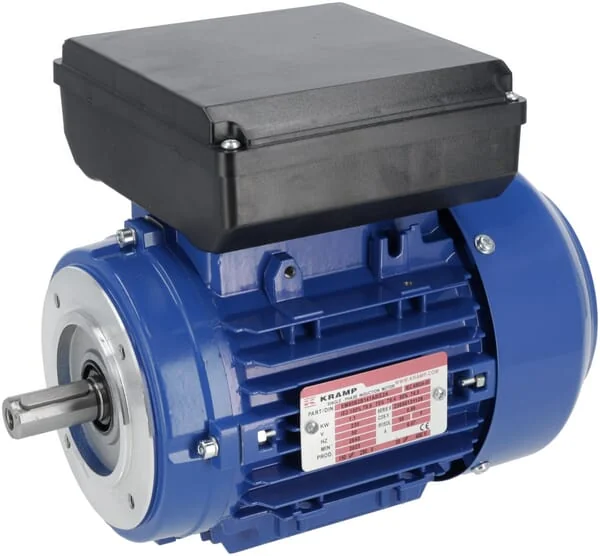

    Kramp - EM80B2B141A0IE2A - Electric Motor 1.1 KW
