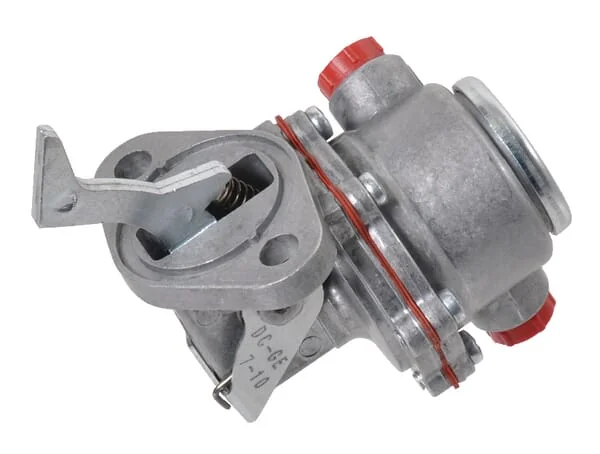

Kramp - F312200710041KR - Diaphragm Pump
Kramp - F312200710041KR - Diaphragm Pump
Kramp - F312200710041KR - Diaphragm Pump
Kramp - F312200710041KR - Diaphragm Pump
Kramp - F312200710041KR - Diaphragm Pump
Kramp - F312200710041KR - Diaphragm Pump

In stock - ready to ship

Order now for delivery between 15 July and 18 July
Free shipping on orders over €60

Pay Securely with

Kramp - F312200710041KR - Diaphragm Pump

Kramp - F312200710041KR - Diaphragm Pump

€18.25

(Excl. VAT)

Price

(Excl. VAT)

€18.25

Product Description

The Kramp F312200710041KR is a high-performance diaphragm pump designed for reliable fluid transfer in agricultural and industrial settings. It features a flow rate of 20 liters per minute and a maximum pressure of 40 bar, operating at 550 revolutions per minute. Connections include a 1/2 inch BSP suction, 3/8 inch BSP pressure, and 1 inch BSP bypass. The pump is equipped with a 1 3/8 inch (6 spline) shaft for robust power transmission. Its compact design, with dimensions of 210 mm length, 200 mm width, and 200 mm height, and a weight of 5.5 kg, makes it suitable for various machinery.
Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 86,639 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Product Details

Brand
Kramp
Part Numbers
f312200710041kr
Unit
Each
Medium
Diesel
Long description
Fuel lift pumps for engines

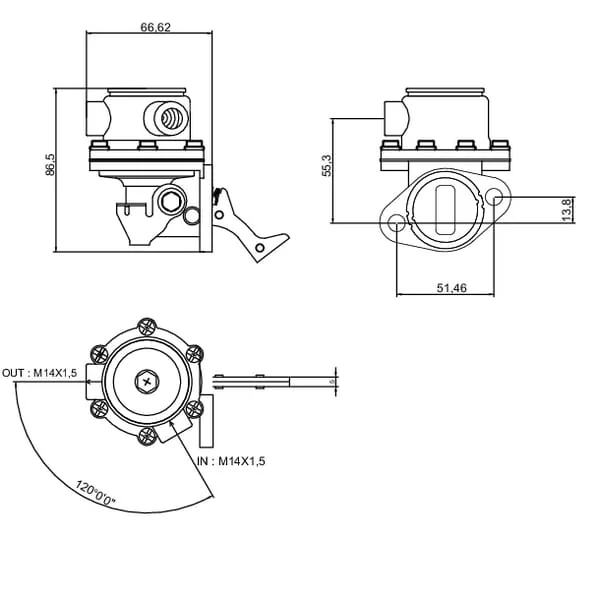

Thread pitch of suction side connection
1.50 mm
Thread pitch of delivery side connection
1.50 mm
Thread diameter of suction side connection
M14
Thread diameter of delivery side connection
M14
EAN
8716106188666
Manufacturer
Kramp
