Kramp - PV52B18 - Kramp 5/2 pneumatic valve 1/8" - PV52B18, 8716106824892

OEM Quality

SKU: kramp-pv52b18

Kramp - PV52B18 - Kramp 5/2 pneumatic valve 1/8" - PV52B18, 8716106824892

€52.10€44.53 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€52.10

Brand
Kramp
Part Numbers
PV52B18; 8716106824892

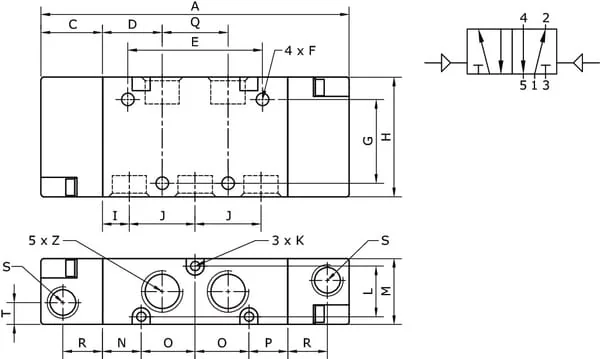

Bore
M 5
Type
Spool valve, bistable
Unit
Each
FBore F
4.2 mm
Nen Flow
740 NI/min
ALength A
84.6 mm
Actuation
Pneumatically
CLength C
18.8 mm
DLength D
15 mm
HHeight H
32 mm
MHeight M
22 mm
Connection
G 1/8 BSP
TDistance T
7 mm
Installation
Free
Material seal
NBR
Mounting type
Through-bore
KBore diameter
3.1 mm
Material housing
Anodized aluminium, coated
Pilot pressure range
1 - 10 BAR
RHole center distance
13.2 mm
Working pressure max.
10 BAR
Working pressure min.
0 BAR
GDistance center to center
23 mm
EDistance for locating holes
31.8 mm
QCenter to center pressure side
17 mm
ODistance center hole to left side
13 mm
PDistance center hole to right side
10.5 mm
JDistance mounting holes center to center
17,2 mm
NDistance mounting holes center to center long side
10.5 mm
IDistance mounting holes center to center short side
6.3 mm
LDistance mounting holes short side center to center
16.9 mm
EAN
8716106824892
Manufacturer
Kramp

The Kramp 5/2 pneumatic valve with part number PV52B18 is an aftermarket part made to OEM quality standards. It features a bistable slide valve design with pneumatic actuation and a G 1/8 BSP connection. The housing is made from coated anodized aluminum and uses NBR seals.
