Kramp-ray25 - Housing unit RAY
Kramp-ray25 - Housing unit RAY

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Kramp-ray25 - Housing unit RAY

Kramp-ray25 - Housing unit RAY

€20.91

(Excl. VAT)

Price

(Excl. VAT)

€20.91

Product Description

The Kramp RAY25 is a robust cast iron housing unit, part of the RAY series, designed for reliable performance in various machinery applications. This complete unit features a 25mm bore diameter and includes a YAR 205-2F radial insert ball bearing, housed within a P205 series housing. It is equipped with a grease nipple for easy lubrication, ensuring extended service life. With two M10 mounting holes, it offers secure installation. The unit has a dynamic load rating of 14 kN and a static load rating of 7.8 kN, operating efficiently within a temperature range of -20 to 120 °C and a speed limit of 6700 rpm. Its durable construction makes it suitable for demanding agricultural and industrial environments.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,529 genuine Kramp spare parts.

Product Details

Brand
INA/FAG
Equivalent OEM Part Numbers

Ina

P205YAR205-2F

Fag

P205YAR205-2F

Skf

P205YAR205-2F
Bore Diameter (mm)
25
Width A (mm)
30
Width B (mm)
38
Length C (mm)
127
Height H (mm)
70
Distance J (mm)
100
Length L (mm)
127
Width N (mm)
12.5
Thickness S (mm)
12
Weight (kg)
0.77
Unit Type
Housing unit
Housing Type
P
Bearing Type
YAR 205-2F
Bearing Series
205
Housing Series
P 205
Material
Cast iron
Lubrication
Grease nipple
Mounting Holes
2
Screw Size
M10
Dynamic Load Rating (kN)
14
Static Load Rating (kN)
7.8
Speed Limit (rpm)
6700
Temperature Range (°C)
-20 to 120
Quality
OEM Quality
Manufacturer
INA/FAG

Similar items you might like

  • Kramp

    Kramp - RB0100080 - Rotovator Blade LH 198x109x70mm 8mm Thick Suitable for Maletti

    Kramp

    €20.94

  • Kramp

    Kramp - RAY35 - Bearing Block MSB 03.72

    Kramp

    €32.29

  • Kramp

    Kramp - RB0100079 - Rotovator Blade RH 198x109x70mm 8mm Thick Suitable for Maletti

    Kramp

    €20.94

  • Kramp

    Kramp - RB036273 - Rotovator Blade RH 188x138x80mm 7mm Thick Suitable for Krone

    Kramp

    €14.40

  • Kramp

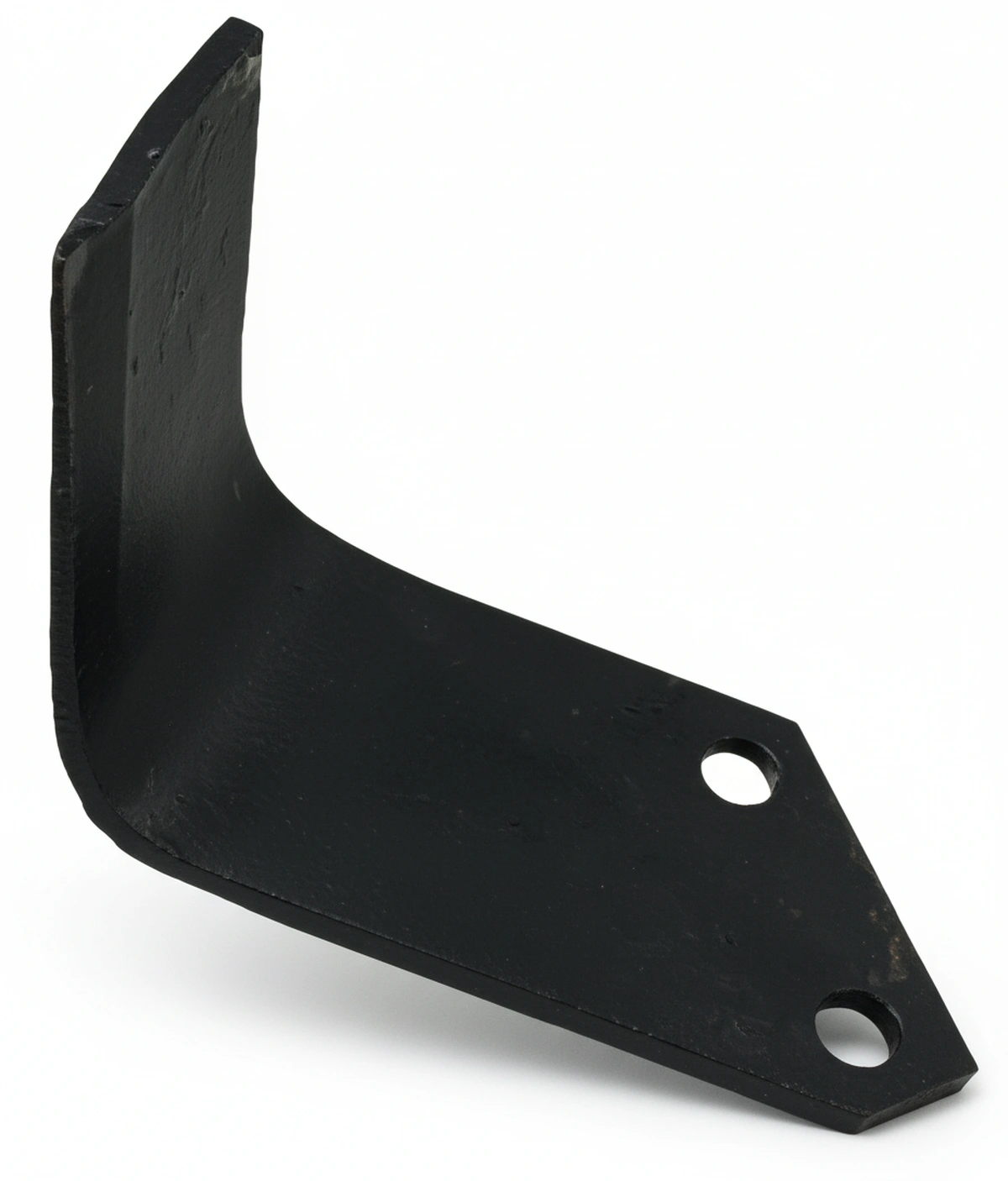

    Kramp - RB036395 - Rotovator Blade LH 188x138x80mm 7mm Thick Suitable for Krone
