Home
Maintenance & Wear Parts
Roller Chains
Kramp - SD5824 - CHAINWHEEL
Kramp - SD5824 - CHAINWHEEL
Kramp - SD5824 - CHAINWHEEL
Kramp - SD5824 - CHAINWHEEL
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Kramp - SD5824 - CHAINWHEEL

Kramp - SD5824 - CHAINWHEEL

€17.61

(Excl. VAT)

Price

(Excl. VAT)

€17.61

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

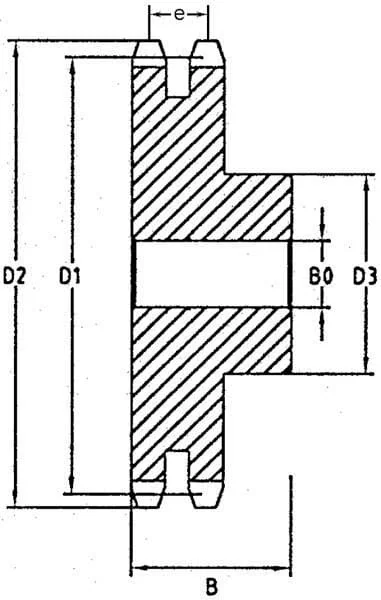

Product Details

Brand
Kramp
Bore
Yes
Type
Duplex
Unit
Each
BWidth
45 mm
Hub type
Hub one side
Material
Steel C45
Teeth width
9 mm
D3Hub diameter
100 mm
Technical info
Hub bore, keyway and tapped hole are optional Recommended maximum bore: D3 x 0.6 For chain type 10B2
B0Bore diameter
16 mm
Chain size code
10 B-2
Number of teeth
24
D1Pitch diameter
121,62 mm
Long description
Sprockets standard DIN 8187 duplex 5/8" x 3/8"
Application range
NOT suitable for chain ASA/DIN 8188
Sections distance
16,59 mm
Total teeth width
25,5 mm
D2Outside diameter
128,5 mm
Manufacturer
Kramp
