Home
Maintenance & Wear Parts
Roller Chains
Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp
Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp
Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp
Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp

Kramp-se11335 - Sprocket Simplex 13 teeth 1" chain 16 B-1 bore 35 mm Kramp

€10.62

(Excl. VAT)

Price

(Excl. VAT)

€10.62

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Bore
Yes
Type
Simplex
Unit
Each
BWidth
40 mm
Details
Induction-hardened teeth (HRc45-55)
Benefits
Longer service life of chain and sprocket
Hub type
Hub one side
Material
Steel C45
Properties
Hub fit: H7 DIN 6885 keyway on the central tooth line Threaded hole on key and at 90°
bKey width
10 mm
Consists of
Sprocket 2 adjusting screws
Teeth width
16,2 mm

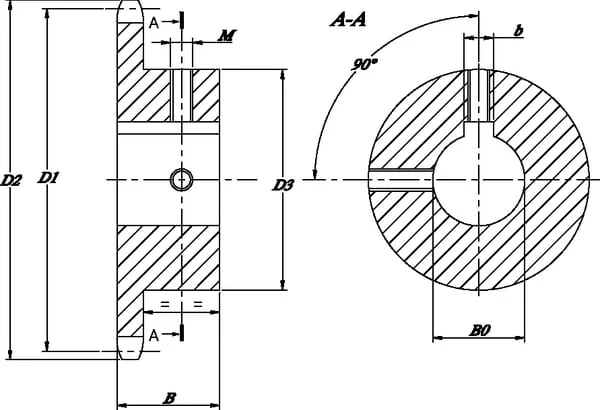

D3Hub diameter
78 mm
Technical info
For type 16b1 chain
B0Bore diameter
35 mm
Chain size code
16 B-1
Number of teeth
13
D1Pitch diameter
106,12 mm
Application range
NOT suitable for chain ASA/DIN 8188
D2Outside diameter
117,7 mm
Teeth hardness range
HRC 45-55
MLocking thread diameter
M8
Manufacturer
Kramp
