Home
Maintenance & Wear Parts
Roller Chains
Kramp - SE583030 - Sprocket
Kramp - SE583030 - Sprocket
Kramp - SE583030 - Sprocket
Kramp - SE583030 - Sprocket

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

Kramp - SE583030 - Sprocket

Kramp - SE583030 - Sprocket

€12.25

(Excl. VAT)

Price

(Excl. VAT)

€12.25

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 85,290 genuine Kramp spare parts.

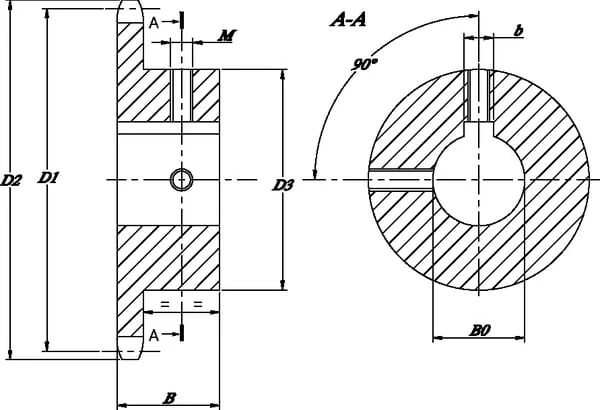

Product Details

Brand
Kramp
Bore
Yes
Type
Simplex
Unit
Each
BWidth
35 mm
Details
Induction-hardened teeth (HRc45-55)
Benefits
Longer service life of chain and sprocket
Hub type
Hub one side
Material
Steel C45
Properties
Hub fit: H7 DIN 6885 keyway on the central tooth line Threaded hole on key and at 90°
bKey width
8 mm
Consists of
Sprocket 2 adjusting screws
Teeth width
9,1 mm
D3Hub diameter
90 mm
Technical info
For type 10B1 chain
B0Bore diameter
30 mm
Chain size code
10 B-1
Number of teeth
30
D1Pitch diameter
151,87 mm
D2Outside diameter
158,8 mm
Teeth hardness range
HRC 45-55
MLocking thread diameter
M6
Manufacturer
Kramp
