Kramp - SHP065KR - Axial Ball End
Kramp - SHP065KR - Axial Ball End
Kramp - SHP065KR - Axial Ball End
Kramp - SHP065KR - Axial Ball End
Kramp - SHP065KR - Axial Ball End
Kramp - SHP065KR - Axial Ball End

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

Kramp - SHP065KR - Axial Ball End

Kramp - SHP065KR - Axial Ball End

€35.44

(Excl. VAT)

Price

(Excl. VAT)

€35.44

Product Description

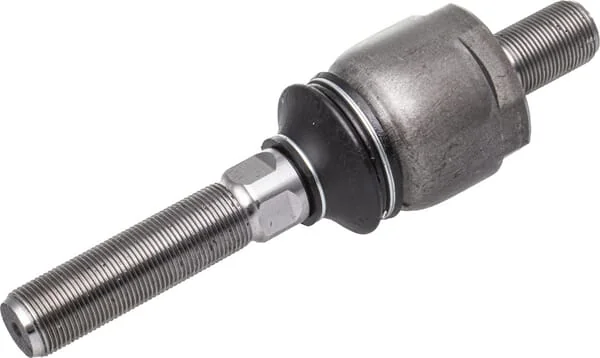

The Kramp SHP065KR is a high-quality axial ball joint designed for reliable steering system performance in agricultural and industrial machinery. This genuine Kramp component features M18x1.5 right-hand threads and a cone diameter ranging from 20.6mm to 22.2mm, with a 26mm cone length and 1:6 angle. Constructed from durable steel with a zinc-plated finish, it includes a grease nipple, dust cap, seal, nut, washer, and split pin for comprehensive installation and long-lasting operation. With an overall length of 115mm and a weight of 0.88kg, it ensures precise control and robust durability.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Head width
56 mm
ATotal length
213 mm
Ball diameter
40 mm
Working length
208 mm
End cone length
37 mm
Long description
Overview axial tie rods
CThread type - rod side
Metric
CThread pitch - rod side
1.50 mm
BThread length - rod side
74 mm
CThread diameter - rod side
M22
CThread direction - rod side
Right
C1Thread type - end side (wheel)
Metric
C1Thread direction - end side (wheel)
Right
Thread length - end side (wheel) (mm)
30,7 mm
C1Pitch of thread - end side (wheel) (mm)
1.50 mm
C1Thread diameter - end side (wheel) (metric)
M22
Manufacturer
Kramp
