Kramp-sy45fmskf - Housing unit SY SKF
Kramp-sy45fmskf - Housing unit SY SKF

Last known price:

€84.76

Get an up-to-date price and availability

Request a Quote

Pay Securely with

Kramp-sy45fmskf - Housing unit SY SKF

Kramp-sy45fmskf - Housing unit SY SKF

Last known price:

€84.76

Request a Quote

Product Description

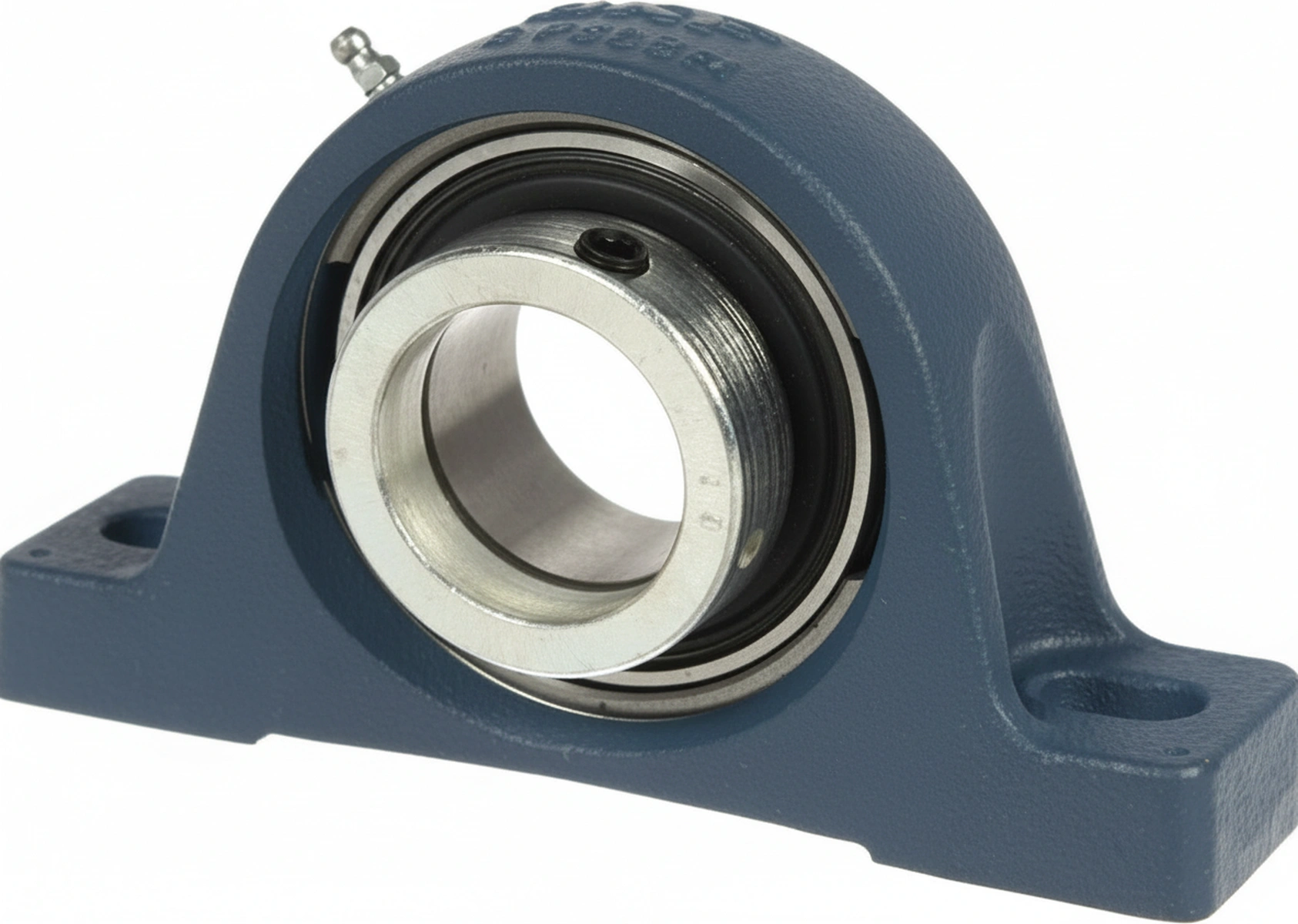

The SKF SY45FMSKF is a robust cast iron housing unit designed for a 45mm shaft. This SY series unit incorporates a YAR 209-2F ball bearing, offering reliable performance with a dynamic load rating of 29.6 kN and a static load rating of 17.8 kN. It has an overall length of 140mm, width of 50mm, and height of 110mm, with a weight of 1.4 kg. The unit is suitable for operating temperatures from -30°C to 120°C and features standard seals and grease lubrication.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
SKF
Equivalent OEM Part Numbers

Skf

SY45FMSKF
Shaft Diameter (mm)
45
Housing Material
Cast iron
Bearing Type
Ball bearing
Series
SY
Weight (kg)
1.4
Length (mm)
140
Width (mm)
50
Height (mm)
110
Mounting Hole Distance (mm)
110
Mounting Hole Diameter (mm)
14
Dynamic Load Rating (kN)
29.6
Static Load Rating (kN)
17.8
Limiting Speed (rpm)
4300
Operating Temperature Min (°C)
-30
Operating Temperature Max (°C)
120
Seal Type
Standard seal
Lubrication
Grease
Inner Ring Width (mm)
49.2
Outer Ring Width (mm)
22
Bearing Designation
YAR 209-2F
Housing Designation
SY 509 M
Quality
OEM Quality
Manufacturer
SKF
