Home
Attachments & Lift
Hitches & Linkage Parts
Top Links

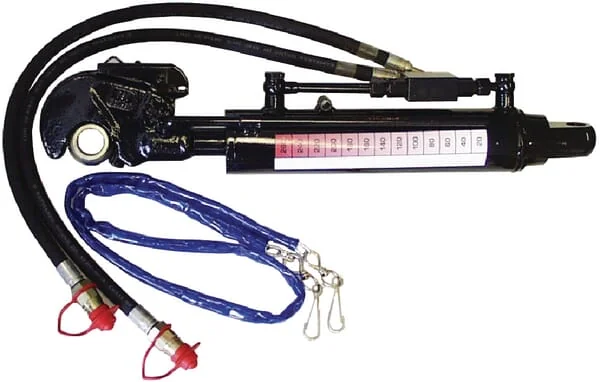

Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3
Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3
Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3
Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3

Kramp - TCVHA4090250K3 - Kramp Hydraulic Top Link Set Cat.3

€306.82

(Excl. VAT)

Price

(Excl. VAT)

€306.82

Product Description

Fitted with hose and nipples Length indicator Fitted with controlled check valve Fitted with hose and nipples Length indicator Fitted with controlled check valve Maximum radial load: 10% of the axial load Bore 63 is suitable for tractors up to 74kW Bore 70 is suitable for tractors up to 135kW Bore 90 is suitable for tractors up to 206kW Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,605 genuine Kramp spare parts.

Product Details

Brand
Kramp
Pros
Ready to use Settings can be easily read Maintains position
Unit
Each
Colour
Black
Stroke
250 mm
Includes
With hose and adaptors Length indicator Equipped with a controlled check valve
Min. length
640 mm
AMax. length
890 mm
Rod diameter
40 mm
Product details
Fitted with hose and nipples Length indicator Fitted with controlled check valve Fitted with hose and nipples Length indicator Fitted with controlled check valve Maximum radial load: 10% of the axial load Bore 63 is suitable for tractors up to 74kW Bore 70 is suitable for tractors up to 135kW Bore 90 is suitable for tractors up to 206kW Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
RAL colour code
9005
Nominal pressure
200 BAR
Cylinder material
Steel ST52
EOutside diameter
102 mm
Max. piston speed
0,1 m/s
Max. working pressure
250 BAR
Cylinder bore diameter
90 mm
Max. working temperature
85 °C
Min. working temperature
-25 °C
DOil connections distance
224 mm
Max. pull capacity at 200 bar
2,5 t
Max. push capacity at 200 bar
12,7 t
Mounting type - rod connection
Hook
Top link category - rod connection
2 3
Mounting type - cylinder connection
Bearing
Mounting thread type - rod connection
BSP
Mounting hole diameter - rod connection
32 mm
Top link category - cylinder connection
3
Mounting thread diameter - rod connection
3/8 Inch
Mounting thread type - cylinder connection
BSP
CMounting thread diameter - cylinder connection
3/8 Inch
Manufacturer
Kramp
