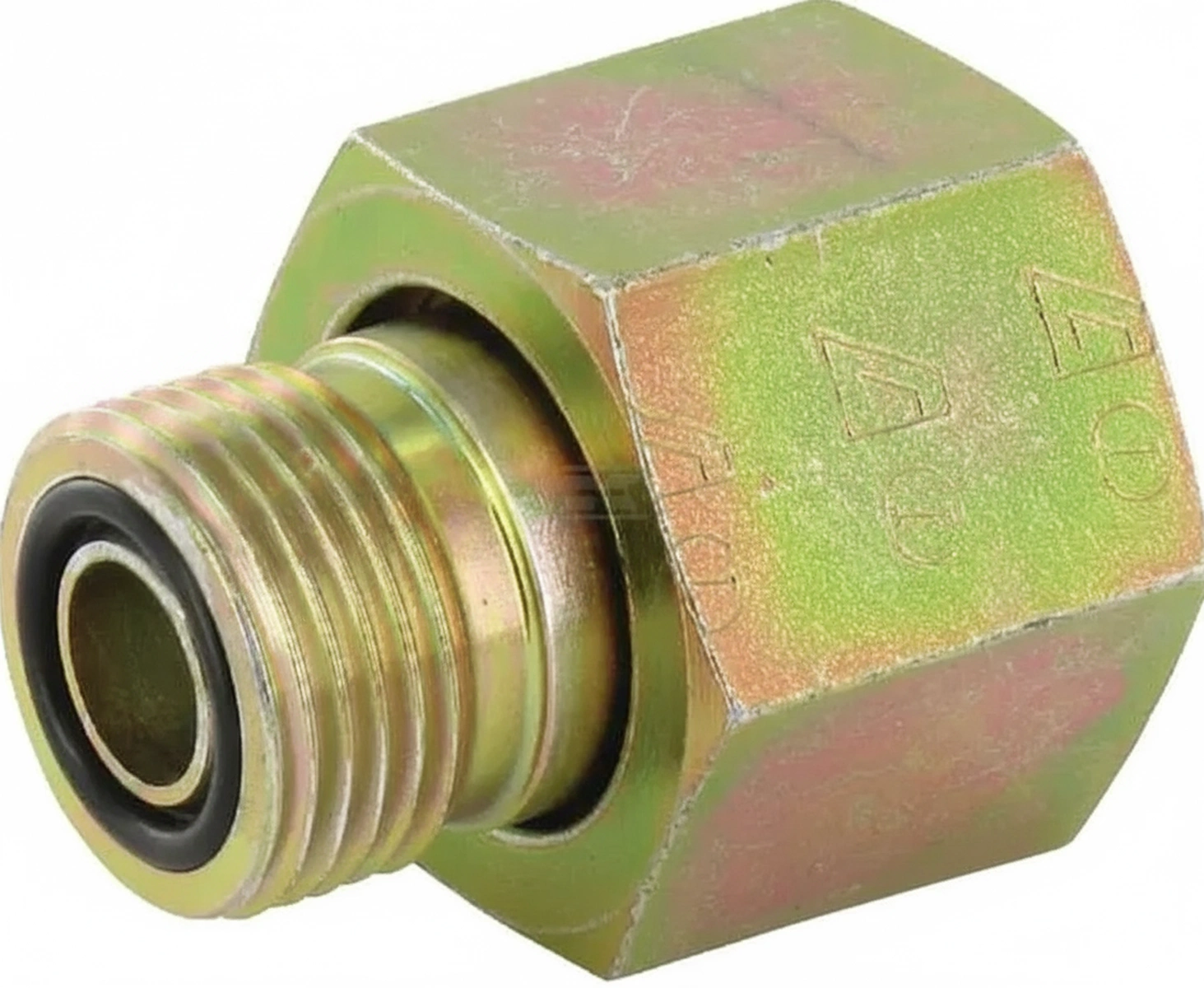

Kramp - VNOW1316 - Adaptor M/F 13/16 x 1 ORFS
Kramp - VNOW1316 - Adaptor M/F 13/16 x 1 ORFS

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Kramp - VNOW1316 - Adaptor M/F 13/16 x 1 ORFS

Kramp - VNOW1316 - Adaptor M/F 13/16 x 1 ORFS

€12.92

(Excl. VAT)

Price

(Excl. VAT)

€12.92

Product Description

The Alfagomma KRAMP-VNOW1316 is a high-quality ORFS (O-Ring Face Seal) hydraulic adaptor, designed for reliable connections in hydraulic systems. This adaptor features a male 13/16-16 UNF thread on one end and a female 1-14 UNF ORFS thread on the other. Constructed from durable zinc-plated steel, it offers excellent corrosion resistance and a maximum working pressure of 690 bar, ensuring robust performance in demanding agricultural and industrial applications. With a length of 48 mm and a weight of 0.12 kg, it is a compact and essential component for hydraulic line configurations.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 40,730 genuine Kramp spare parts.

Product Details

Brand
Alfagomma
Part Numbers
vnow1316
Type
Adaptor
Material
Steel
Surface Treatment
Zinc-plated
Thread 1 Type
Male 13/16-16 UNF
Thread 2 Type
Female 1-14 UNF ORFS
Max Working Pressure (bar)
690
Length (mm)
48
Weight (kg)
0.12
Quality
OEM Quality
Manufacturer
Alfagomma
