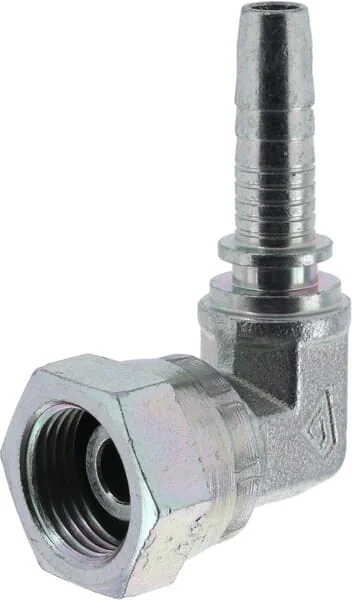

ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°
ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°
ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°
ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°

ALFAGOMMA - PF8690S - Column dn08-3/8 bsp-90°

€12.83

(Excl. VAT)

Price

(Excl. VAT)

€12.83

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Pros
Suitable for small installation space
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Benefits
Suitable for confined installation spaces
Includes
Insert O-ring
Material
Steel
Cone angle
60 °
ISO standard
228
Product details
Low elbow - O-ring seal
Surface treatment
Zinc-plated White passivated
Connection 2, type
Hose end
Connection no 1 type
Cone
Connection 2, diameter
8 mm
Connection no 1 length
19,5 mm
Connection no 1 diameter
3/8 Inch
Connection no 1 type code
DKOR
Connection no 1 thread type
BSP
CH1Connection no 1 wrench size
22.0 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female

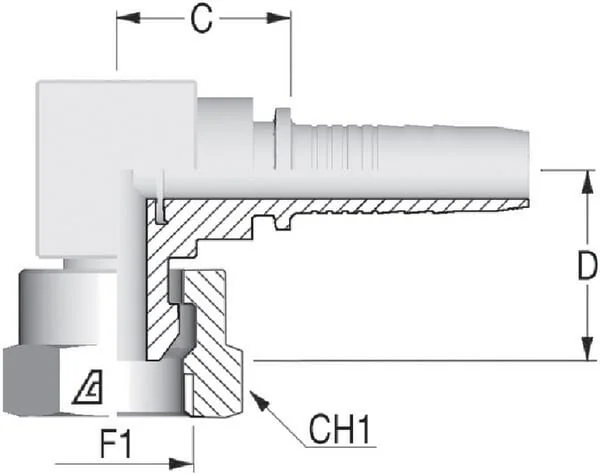

CConnection centre to insert distance
19,5 mm
DConnection 2, centre to end distance
21,5 mm
Manufacturer
Alfagomma
