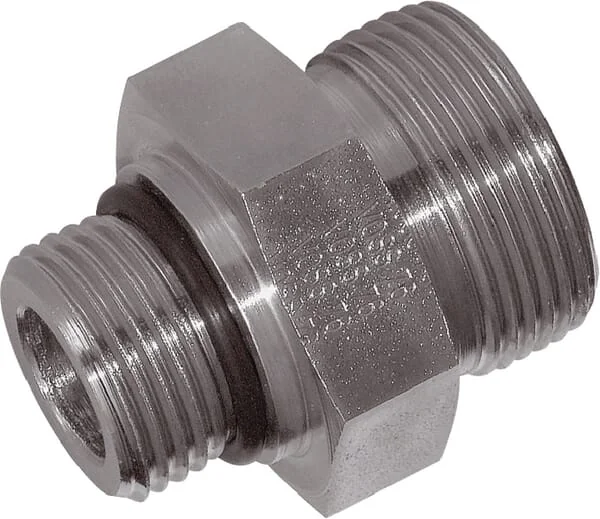

Voss - GES22L78UNF - Coupling 22L 7/8UNF

OEM Quality

SKU: voss-ges22l78unf

Voss - GES22L78UNF - Coupling 22L 7/8UNF

€13.48

(excl. VAT)
RRP:€16.63
Save €3.15

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€13.48

The VOSS GES22L78UNF is a high-quality genuine VOSS straight stud coupling designed for reliable hydraulic connections. This L-series (light duty) fitting features a 22mm tube connection for hydraulic tubing and a 7/8-14 UNF male thread for secure port attachment. Constructed from durable steel, often zinc-nickel plated, it ensures leak-free performance and is rated for a maximum operating pressure of 250 bar, suitable for various agricultural, construction, and industrial hydraulic systems.
Voss
Voss is recognized as a supplier of high-quality industrial and agricultural components, with a particular focus on hydraulic systems and fluid power solutions. While specific founding details like year and founder are not widely publicized, the brand has established a presence in the market for its robust and reliable products. Its components are designed to meet the demanding requirements of various machinery and applications. The company's product portfolio primarily encompasses hydraulic fittings, hoses, and connection technology. These components are crucial for ensuring efficient and leak-free fluid transfer in complex systems. Voss also offers a range of hydraulic control valves, ball bearings, and various fasteners, catering to a broad spectrum of industrial and agricultural needs. The brand's focus on precision engineering ensures compatibility and performance across different equipment types. At Partao, you can find a comprehensive selection of Voss spare parts. Our top categories for this brand include Ball Bearings, Bolts & Fasteners, Hand Tools, Hoses & Fittings, and Hydraulic Control Valves. Over 22,632 genuine Voss spare parts are available at Partao. Equipment manufacturers and maintenance professionals often select Voss components for their durability and performance in challenging environments. The brand's solutions are frequently integrated into tractor attachments, irrigation systems, and other agricultural machinery where reliable fluid handling is critical. Its commitment to quality helps ensure the longevity and operational efficiency of the machinery it supports.

Brand
Part Numbers
ges22l78unf
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
36,7 mm
Series
L
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
22 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
12 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
60 N·m
Connection no 1 diameter
22 mm
Connection no 1 hex size
27 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
36.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
7/8 Inch
S1Connection no 1 wrench size
32.0 mm
Connection 2, threads per inch
14
KConnection no 1 thread length
12,7 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
16,5 mm
L2Connection no 1 center to end distance
33 mm
Manufacturer
Voss
