VOSS - GES35LR114WD - Coupling 35L R1 1/4

OEM Quality

SKU: voss-ges35lr114wd

VOSS - GES35LR114WD - Coupling 35L R1 1/4

€10.99€9.39 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€10.99

Brand
Voss
Part Numbers
ges35lr114wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
35L

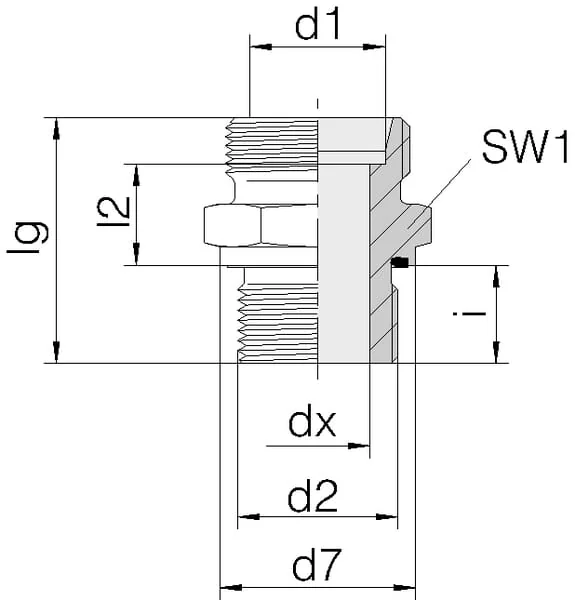

lgLength
48 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
d1Pipe diameter
35 mm
Surface treatment
Zinc Nickel
dxInside diameter
30 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
330 N·m
Connection 2, thread type
BSP
GConnection no 1 diameter
35 mm
d7Connection no 1 hex size
49,9 mm
S2Connection 2, wrench size
50.0 mm
GConnection no 1 thread type
BSP
GConnection no 1 thread pitch
2.00 mm
Connection 2, threads per inch
11
SW1Connection no 1 wrench size
50.0 mm
iConnection no 1 thread length
20 mm
d2Connection 2, thread diameter
1-1/4 Inch
Connection 2, type - male/female
Male
GConnection no 1 thread diameter
M45
Connection no 1 type - male/female
Male
LConnection 2, centre to end distance
17,5 mm
L2Connection no 1 center to end distance
39 mm
Manufacturer
Voss

Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
