Voss - GES38SR1WD - Coupling 38S R1
Voss - GES38SR1WD - Coupling 38S R1
Voss - GES38SR1WD - Coupling 38S R1
Voss - GES38SR1WD - Coupling 38S R1

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

Voss - GES38SR1WD - Coupling 38S R1

Voss - GES38SR1WD - Coupling 38S R1

€11.70

(Excl. VAT)

Price

(Excl. VAT)

€11.70

Product Description

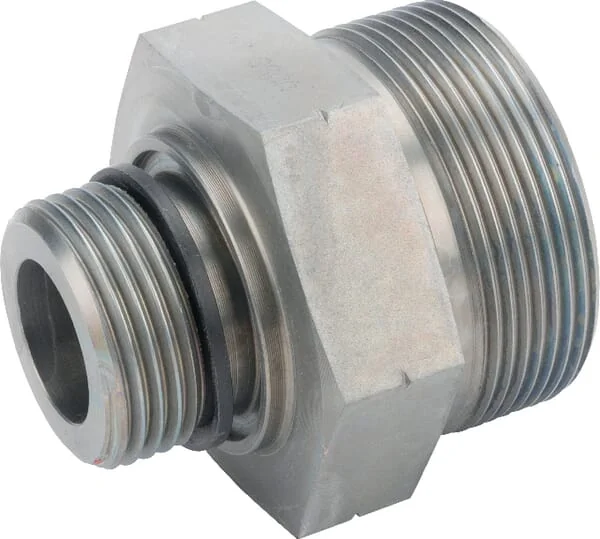

The VOSS GES38SR1WD is a genuine VOSSFormSQR S-series straight hydraulic coupling, designed for heavy-duty applications. This robust steel fitting features an R 1 inch thread and is engineered for secure connection with 38mm outer diameter hydraulic tubes, ensuring reliable performance in high-pressure systems.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
38S
lgLength
60 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
d1Pipe diameter
38 mm
Surface treatment
Zinc Nickel
dxInside diameter
20 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
420 BAR
Max. tightening torque
250 N·m
Connection no 1 diameter
38 mm
Connection 2, thread type
BSP
Connection 2, wrench size
55.0 mm
d7Connection no 1 hex size
39,9 mm
Connection no 1 thread type
BSP
Connection no 1 thread pitch
2.00 mm
Connection 2, threads per inch
11
SW1Connection no 1 wrench size
60.0 mm
iConnection no 1 thread length
18 mm
Connection no 1 thread diameter
M52
d2Connection 2, thread diameter
1 Inch
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Manufacturer
Voss
