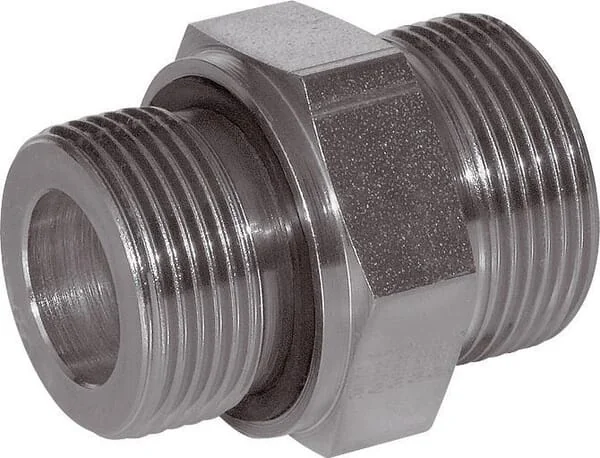

Voss - GES35LR1WD - Coupling 35L R1
Voss - GES35LR1WD - Coupling 35L R1
Voss - GES35LR1WD - Coupling 35L R1
Voss - GES35LR1WD - Coupling 35L R1
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Voss - GES35LR1WD - Coupling 35L R1

Voss - GES35LR1WD - Coupling 35L R1

€12.06

(Excl. VAT)

Price

(Excl. VAT)

€12.06

Product Description

The VOSS GES35LR1WD is a genuine VOSS Fluid straight male stud coupling from the GES series, designed for robust hydraulic applications. This light series (L) fitting is specifically engineered for a 35 mm tube outer diameter and features a male thread R1 (G 1" according to ISO 228-1). Constructed from durable steel with zinc-nickel plating (WD), it offers excellent corrosion resistance and reliability in demanding hydraulic systems, capable of handling a maximum operating pressure of 250 bar.
Voss
Voss is recognized as a supplier of high-quality industrial and agricultural components, with a particular focus on hydraulic systems and fluid power solutions. While specific founding details like year and founder are not widely publicized, the brand has established a presence in the market for its robust and reliable products. Its components are designed to meet the demanding requirements of various machinery and applications. The company's product portfolio primarily encompasses hydraulic fittings, hoses, and connection technology. These components are crucial for ensuring efficient and leak-free fluid transfer in complex systems. Voss also offers a range of hydraulic control valves, ball bearings, and various fasteners, catering to a broad spectrum of industrial and agricultural needs. The brand's focus on precision engineering ensures compatibility and performance across different equipment types. At Partao, you can find a comprehensive selection of Voss spare parts. Our top categories for this brand include Ball Bearings, Bolts & Fasteners, Hand Tools, Hoses & Fittings, and Hydraulic Control Valves. Over 22,632 genuine Voss spare parts are available at Partao. Equipment manufacturers and maintenance professionals often select Voss components for their durability and performance in challenging environments. The brand's solutions are frequently integrated into tractor attachments, irrigation systems, and other agricultural machinery where reliable fluid handling is critical. Its commitment to quality helps ensure the longevity and operational efficiency of the machinery it supports.

Product Details

Brand
Voss
Part Numbers
ges35lr1wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
35L
lgLength
46 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
d1Pipe diameter
35 mm
Surface treatment
Zinc Nickel
dxInside diameter
23 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
230 N·m
Connection no 1 diameter
35 mm
Connection 2, thread type
BSP
Connection 2, wrench size
46.0 mm
d7Connection no 1 hex size
39,9 mm
Connection no 1 thread type
BSP
Connection no 1 thread pitch
2.00 mm
Connection 2, threads per inch
11
SW1Connection no 1 wrench size
50.0 mm
iConnection no 1 thread length
18 mm
Connection no 1 thread diameter
M45
d2Connection 2, thread diameter
1 Inch
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
46 mm
Connection no 1 center to end distance
17,5 mm
Manufacturer
Voss
