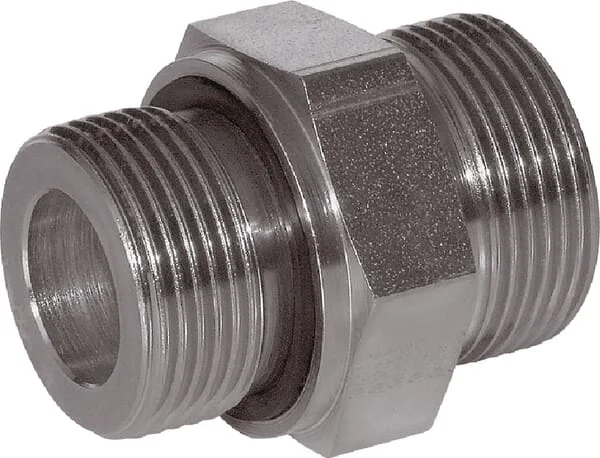

Voss - GES28LM33WD - Coupling 28L M33
Voss - GES28LM33WD - Coupling 28L M33
Voss - GES28LM33WD - Coupling 28L M33
Voss - GES28LM33WD - Coupling 28L M33

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - GES28LM33WD - Coupling 28L M33

Voss - GES28LM33WD - Coupling 28L M33

€6.04

(Excl. VAT)

Price

(Excl. VAT)

€6.04

Product Description

The VOSS GES28LM33WD is a genuine DKO-L type straight stud fitting designed for hydraulic systems. This light series (L) component features an M33x2 connection thread and is suitable for 28mm outer diameter tubes. Manufactured from robust steel with a durable zinc-nickel coating, it offers excellent corrosion resistance and reliability. Conforming to DIN 2353 / ISO 8434-1 standards, this fitting is engineered for demanding applications with an operating pressure up to 250 bar.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
28L
lgLength
43 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
WD = Pre-assembled with flexible seal Optimal cutting ring connection and functionality Multiple corrosion resistance
d1Pipe diameter
28 mm
Surface treatment
Zinc Nickel
dxInside diameter
23 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
230 N·m
Connection no 1 diameter
28 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
2.00 mm
d7Connection no 1 hex size
39,9 mm
Connection no 1 thread type
Metric
S2Connection 2, wrench size
41.0 mm
Connection no 1 thread pitch
2.00 mm
SW1Connection no 1 wrench size
41.0 mm
iConnection no 1 thread length
18 mm
Connection no 1 thread diameter
33 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
17,5 mm
L2Connection no 1 center to end distance
34 mm
Manufacturer
Voss
