Voss - GES28LR34WD - Coupling 28L R3/4
Voss - GES28LR34WD - Coupling 28L R3/4
Voss - GES28LR34WD - Coupling 28L R3/4
Voss - GES28LR34WD - Coupling 28L R3/4
Voss - GES28LR34WD - Coupling 28L R3/4
Voss - GES28LR34WD - Coupling 28L R3/4

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - GES28LR34WD - Coupling 28L R3/4

Voss - GES28LR34WD - Coupling 28L R3/4

€10.30

(Excl. VAT)

Price

(Excl. VAT)

€10.30

Product Description

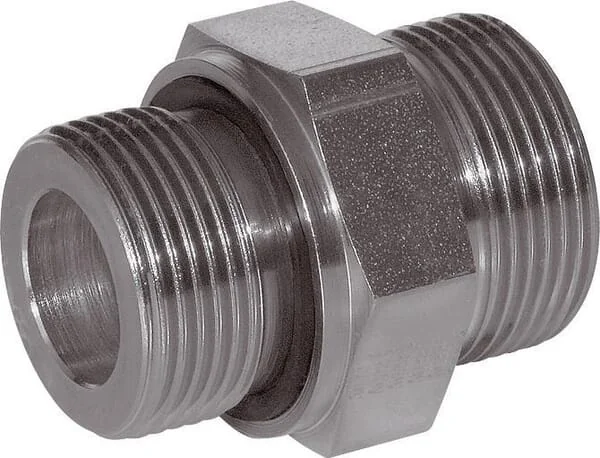

The VOSS GES28LR34WD is a high-quality genuine VOSS coupling, featuring a 28L light series tube connection and an R3/4 male thread. This robust coupling is engineered for reliable performance in various hydraulic applications, ensuring secure and leak-free connections. It is suitable for systems requiring a 28 mm outside diameter tube and an R3/4 pipe thread.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
28L
lgLength
41 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
d1Pipe diameter
28 mm
Surface treatment
Zinc Nickel
dxInside diameter
18 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
180 N·m
Connection 2, thread type
BSP
GConnection no 1 diameter
28 mm
d7Connection no 1 hex size
31,9 mm
S2Connection 2, wrench size
41.0 mm
GConnection no 1 thread type
BSP
GConnection no 1 thread pitch
2.00 mm
Connection 2, threads per inch
14
SW1Connection no 1 wrench size
41.0 mm
iConnection no 1 thread length
16 mm
d2Connection 2, thread diameter
3/4 Inch
Connection 2, type - male/female
Male
GConnection no 1 thread diameter
M36
Connection no 1 type - male/female
Male
LConnection 2, centre to end distance
17,5 mm
L2Connection no 1 center to end distance
34 mm
Manufacturer
Voss
