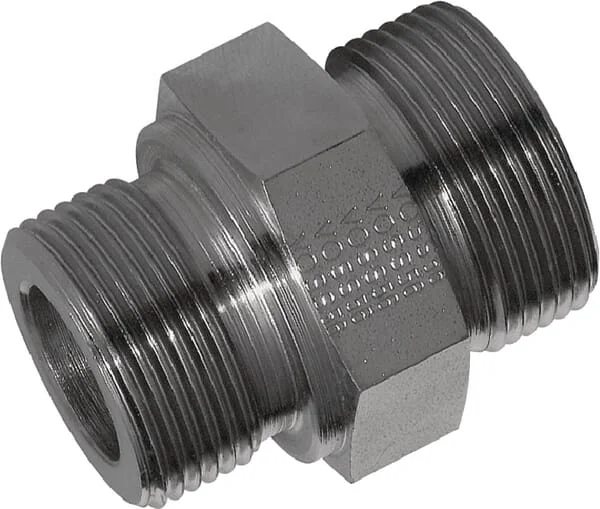

VOSS - GES22LR1 - Coupling 22L R1

OEM Quality

SKU: voss-ges22lr1

VOSS - GES22LR1 - Coupling 22L R1

€13.47€11.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€13.47

Brand
Voss
Part Numbers
ges22lr1
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
43 mm
Series
L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
22 mm
Inside diameter
19 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
200 BAR
Max. tightening torque
400 N·m
Connection no 1 diameter
22 mm
Connection no 1 hex size
39 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
S2Connection 2, wrench size
36.0 mm
Connection 2, thread diameter
1 Inch
S1Connection no 1 wrench size
41.0 mm
Connection 2, threads per inch
11
KConnection no 1 thread length
18 mm
d2Connection no 1 thread pitch
2.00 mm
Connection 2, type - male/female
Male
d2Connection no 1 thread diameter
M30
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
17,5 mm
L2Connection no 1 center to end distance
34 mm
Manufacturer
Voss

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
