Mac Power - GF35DO - Rod End With Welding Face
Mac Power - GF35DO - Rod End With Welding Face
Mac Power - GF35DO - Rod End With Welding Face
Mac Power - GF35DO - Rod End With Welding Face
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Mac Power - GF35DO - Rod End With Welding Face

Mac Power - GF35DO - Rod End With Welding Face

€15.51

(Excl. VAT)

Price

(Excl. VAT)

€15.51

Product Details

Brand
Mac Power
Unit
Each
Material
Forged steel
Properties
Requires maintenance Rectangular welding flange Solid design Lubricated connection steel/steel

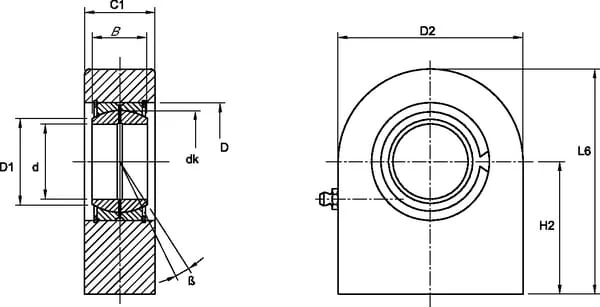

BHole length
25 mm
ßEdge angle
6 °
D2Total length
83 mm
L6Total height
102,5 mm
dHole diameter
35 mm
Application range
Hydraulic cylinder
dkHead outside diameter
83 mm
Basic radial load static
196000 N
Basic radial load dynamic
80000 N
DBearing outside diameter
55 mm
C1Head width (hole length)
30 mm
D1Outside diameter of inner ring
39,7 mm
H2Hole centre to bottom distance
61 mm
Manufacturer
Mac Power
