Mac Power - GF90DO - Rod End With Welding Face
Mac Power - GF90DO - Rod End With Welding Face
Mac Power - GF90DO - Rod End With Welding Face
Mac Power - GF90DO - Rod End With Welding Face

In stock - ready to ship

Order now for delivery between 13 May and 16 May
Free shipping

Pay Securely with

Mac Power - GF90DO - Rod End With Welding Face

Mac Power - GF90DO - Rod End With Welding Face

€178.48

(Excl. VAT)

Price

(Excl. VAT)

€178.48

Product Description

Application: Hydraulic cylinder Properties: Requires maintenance Rectangular welding flange Solid design Lubricated connection steel/steel
Mac Power

Product Details

Brand
Mac Power
Unit
Each
Material
Forged steel
Properties
Requires maintenance Rectangular welding flange Solid design Lubricated connection steel/steel

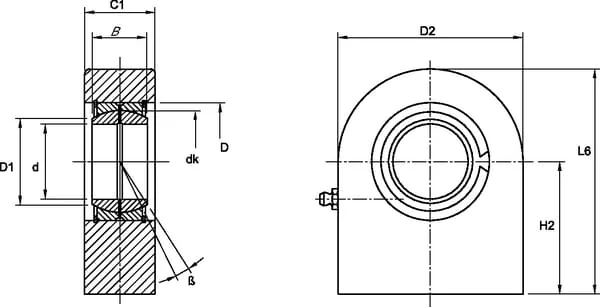

BHole length
60 mm
ßEdge angle
5 °
D2Total length
226 mm
L6Total height
226 mm
dHole diameter
90 mm
Application range
Hydraulic cylinder
Basic radial load static
13400000 N
Basic radial load dynamic
490000 N
DBearing outside diameter
130 mm
D1Outside diameter of inner ring
98,1 mm
H2Hole centre to bottom distance
150 mm
Manufacturer
Mac Power
