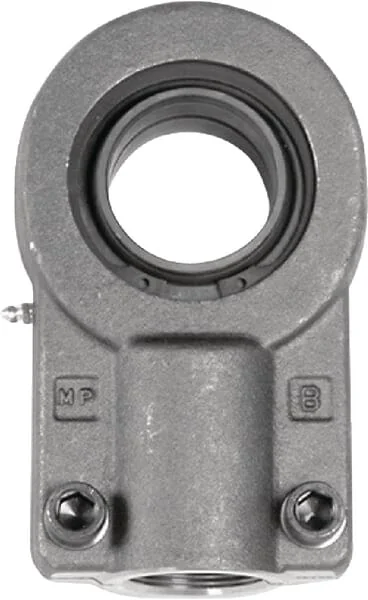

Mac Power - GIHNK20LO - Rod End

Mac Power - GIHNK20LO - Rod End

Mac Power - GIHNK20LO - Rod End

Mac Power - GIHNK20LO - Rod End

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Mac Power - GIHNK20LO - Rod End

Mac Power - GIHNK20LO - Rod End

€14.76

(Excl. VAT)

Price

(Excl. VAT)

€14.76

Number of products

Product Details

Brand

D

35 mm

C1

17 mm

D1

25 mm

D2

47 mm

b.

4 °

Type

Female thread

Unit

Each

Thread

M16x1.5

D2Width

47 mm

Diameter

5.000 mm

L4Length

75.2 mm

Properties

Requires maintenance Lubricated connection steel/steel With 2 DIN912-10.9 screws for fastening Fine screw thread for normal cylinders

L7Length L7

22 mm

D5Width basis

47 mm

Hole diameter

20 mm

C1Height house

17 mm

D4Height basis

25 mm

ßEdge degrees

4 °

L3Thread length

23 mm

Thread direction

Right

dInside diameter

20 mm

Application range

Agricultural machines Cylinder Articulated points Suspension

BHeight inner ring

20 mm

DOutside diameter bearing

35 mm

D1Outside diameter innerring

25 mm

H1Distance basis center shaft

52 mm

Manufacturer

Mac Power
