Maintenance & Wear Parts

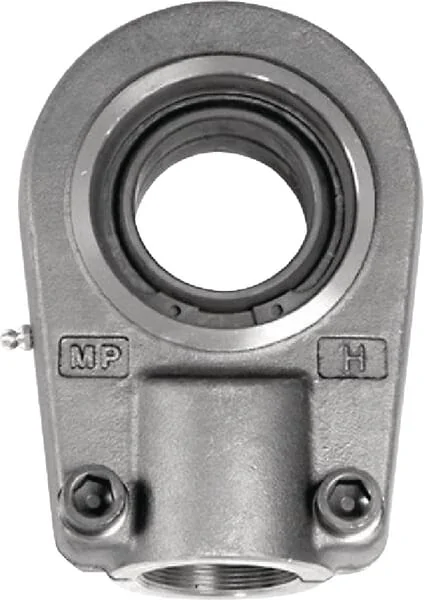

Mac Power - GIHRK80DO - Rod End

Mac Power - GIHRK80DO - Rod End

Mac Power - GIHRK80DO - Rod End

Mac Power - GIHRK80DO - Rod End

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Mac Power - GIHRK80DO - Rod End

Mac Power - GIHRK80DO - Rod End

€132.28

(Excl. VAT)

Price

(Excl. VAT)

€132.28

Number of products

Product Details

Brand

B

55 mm

D

120 mm

C1

60 mm

D1

89.4 mm

D2

176 mm

b.

6 °

Type

Female thread

Unit

Each

Thread

M80x2

D2Width

176 mm

Benefits

Low space requirement

Diameter

4.000 mm

L4Length

265 mm

Hub Width

55 mm

Properties

Requires maintenance Lubricated connection steel/steel With 2 DIN912-10.9 screws for fastening Fine screw thread for normal cylinders

L7Length L7

80 mm

D5Width basis

160 mm

Hole diameter

80 mm

C1Height house

60 mm

D4Height basis

105 mm

ßEdge degrees

6 °

L3Thread length

81 mm

Thread direction

Right

dInside diameter

80 mm

Application range

Agricultural machines Cylinder Articulated points Suspension

BHeight inner ring

55 mm

DOutside diameter bearing

120 mm

D1Outside diameter innerring

89.4 mm

H1Distance basis center shaft

170 mm

Manufacturer

Mac Power
