Maintenance & Wear Parts

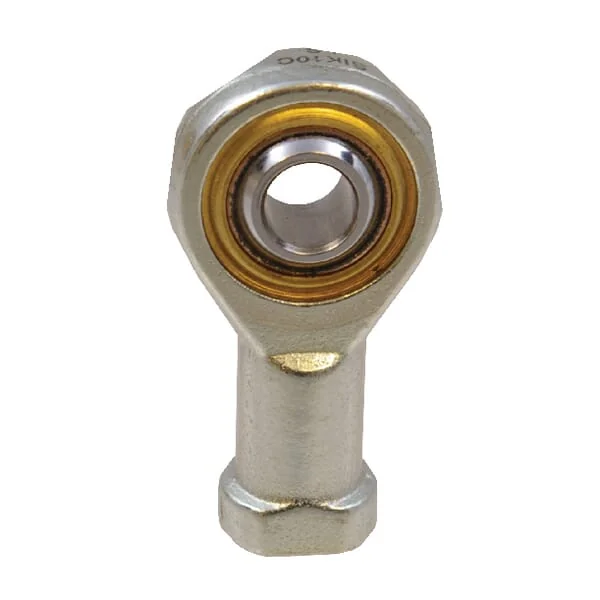

Mac Power - GIKPR12PW - Rod End

Mac Power - GIKPR12PW - Rod End

Mac Power - GIKPR12PW - Rod End

Mac Power - GIKPR12PW - Rod End

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Mac Power - GIKPR12PW - Rod End

Mac Power - GIKPR12PW - Rod End

€6.93

(Excl. VAT)

Price

(Excl. VAT)

€6.93

Number of products

Product Details

Brand

Type

Female thread

Unit

Each

Thread

M12x1.25

d2Width

34 mm

d3Thread

M12x1.25 mm

l4Length

65 mm

Properties

Maintenance-free Lubricated connection hard chrome/PTFE Fine screw thread for normal cylinders

L5Length L5

6,5 mm

L7Length L7

17 mm

Thread type

Right Hand

D4Diameter D4

17.5 mm

C1Height house

12,5 mm

l3Thread length

18 mm

Thread direction

Right

dInside diameter

12 mm

ÃŸEdge degrees

12 °

Application range

Agricultural machines Cylinder Articulated points Suspension

Surface treatment

Zinc-plated

BHeight inner ring

16 mm

d5Outside diameter

22 mm

WOutside diameter basis

18 mm

dKOutside diameter ball

22.225 mm

DOutside diameter bearing

26 mm

d1Outside diameter innerring

15.4 mm

h1Distance basis center shaft

50 mm

Manufacturer

Mac Power
