Maintenance & Wear Parts

Mac Power - GIKR16PW - Rod End

Mac Power - GIKR16PW - Rod End

Mac Power - GIKR16PW - Rod End

Mac Power - GIKR16PW - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GIKR16PW - Rod End

Mac Power - GIKR16PW - Rod End

€9.25

(Excl. VAT)

Price

(Excl. VAT)

€9.25

Number of products

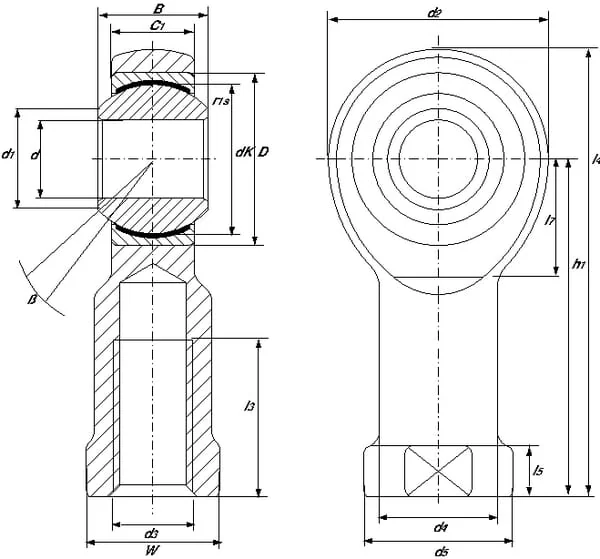

Product Details

Brand

Type

Female thread

Unit

Each

Thread

M16x2

d2Width

42 mm

l4Length

85 mm

Properties

Maintenance-free Lubricated connection hard chrome/PTFE

L5Length L5

8 mm

L7Length L7

23 mm

Thread type

Right Hand

D4Diameter D4

22 mm

C1Height house

15 mm

l3Thread length

28 mm

dInside diameter

16 mm

ÃŸEdge degrees

14 °

Application range

Agricultural machines Cylinder Articulated points Suspension

Surface treatment

Zinc-plated

BHeight inner ring

21 mm

d5Outside diameter

28 mm

WOutside diameter basis

22 mm

dKOutside diameter ball

28.575 mm

DOutside diameter bearing

32 mm

d1Outside diameter innerring

19.3 mm

h1Distance basis center shaft

64 mm

Manufacturer
