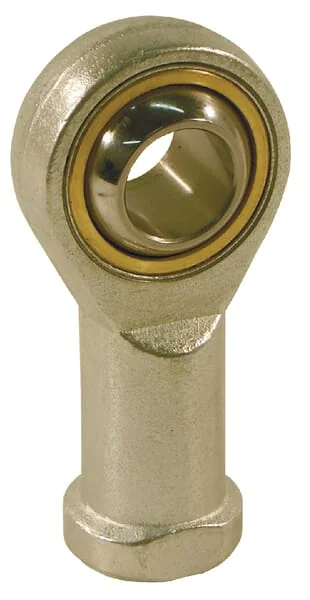

Mac Power - GIKR6PW - Rod End

Mac Power - GIKR6PW - Rod End

Mac Power - GIKR6PW - Rod End

Mac Power - GIKR6PW - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GIKR6PW - Rod End

Mac Power - GIKR6PW - Rod End

€4.70

(Excl. VAT)

Price

(Excl. VAT)

€4.70

Number of products

Product Details

Brand

Type

Female thread

Unit

Each

Thread

M6x1

d2Width

20 mm

l4Length

40 mm

Properties

Maintenance-free Lubricated connection hard chrome/PTFE

L5Length L5

5 mm

L7Length L7

11 mm

Thread type

Right Hand

D4Diameter D4

10 mm

C1Height house

6,75 mm

l3Thread length

12 mm

dInside diameter

6 mm

ÃŸEdge degrees

9 °

Application range

Agricultural machines Cylinder Articulated points Suspension

Surface treatment

Zinc-plated

BHeight inner ring

9 mm

d5Outside diameter

13 mm

WOutside diameter basis

11 mm

dKOutside diameter ball

12.7 mm

DOutside diameter bearing

16 mm

d1Outside diameter innerring

8.9 mm

h1Distance basis center shaft

30 mm

Manufacturer

Mac Power
