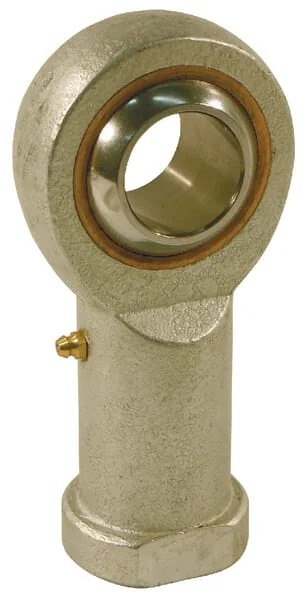

Mac Power - GIKR8PB - Rod End

Mac Power - GIKR8PB - Rod End

Mac Power - GIKR8PB - Rod End

Mac Power - GIKR8PB - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GIKR8PB - Rod End

Mac Power - GIKR8PB - Rod End

€5.51

(Excl. VAT)

Price

(Excl. VAT)

€5.51

Number of products

Product Details

Brand

Unit

Each

Properties

Requires maintenance Lubricated connection steel/bronze

BHole length

12 mm

Thread pitch

1.25 mm

ßEdge angle

14 °

l5Height base

5 mm

dHole diameter

8 mm

l4Total height

47 mm

l3Thread length

17 mm

Thread direction

Right

d4Shaft diameter

12,5 mm

Application range

Agricultural machines Cylinder Articulated points Suspension

Surface treatment

Zinc-plated

d3Thread diameter

M8

WBase outside diameter

14 mm

dKBall outside diameter

15,9 mm

Shaft to center distance

13 mm

C1Head width (hole length)

9 mm

d5Bearing outside diameter

16 mm

d1Outside diameter of inner ring

29,5 mm

h1Hole centre to bottom distance

36 mm

Manufacturer

Mac Power

Similar items you might like

Mac Power - GIKR8PW - Rod End
Mac Power
€4.72

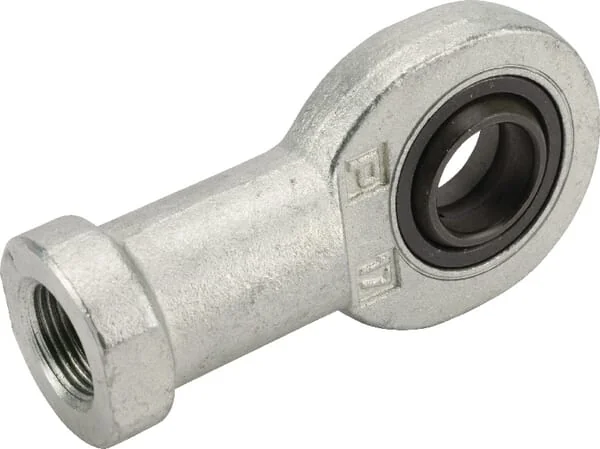

Mac Power - GIL10DO - Rod Head
