Mac Power - GK12DO - Rod End With Welding Face

Mac Power - GK12DO - Rod End With Welding Face

€6.25

(Excl. VAT)

Price

(Excl. VAT)

€6.25

Number of products

Product Details

Brand

Unit

Each

Material

Forged steel

Properties

Requires maintenance Cylindrical welded end Centring pin with 45° weld on strip on the end Lubricated connection steel/steel

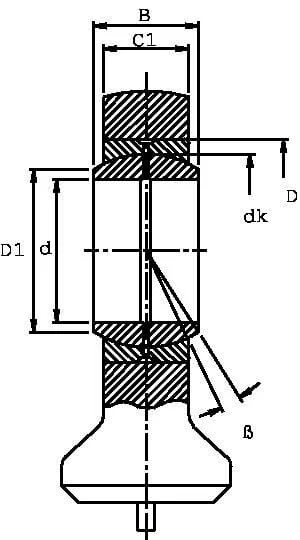

BHole length

10 mm

ßEdge angle

11 °

L6Total height

44 mm

Shaft diameter

17,5 mm

dHole diameter

12 mm

Application range

Hydraulic cylinder

D7Center pin diameter

3 mm

Head outside diameter

34 mm

DBearing outside diameter

22 mm

C1Head width (hole length)

8 mm

L7Shaft to center distance

18 mm

D1Outside diameter of inner ring

14,9 mm

H2Hole centre to bottom distance

27 mm

Manufacturer

Mac Power
