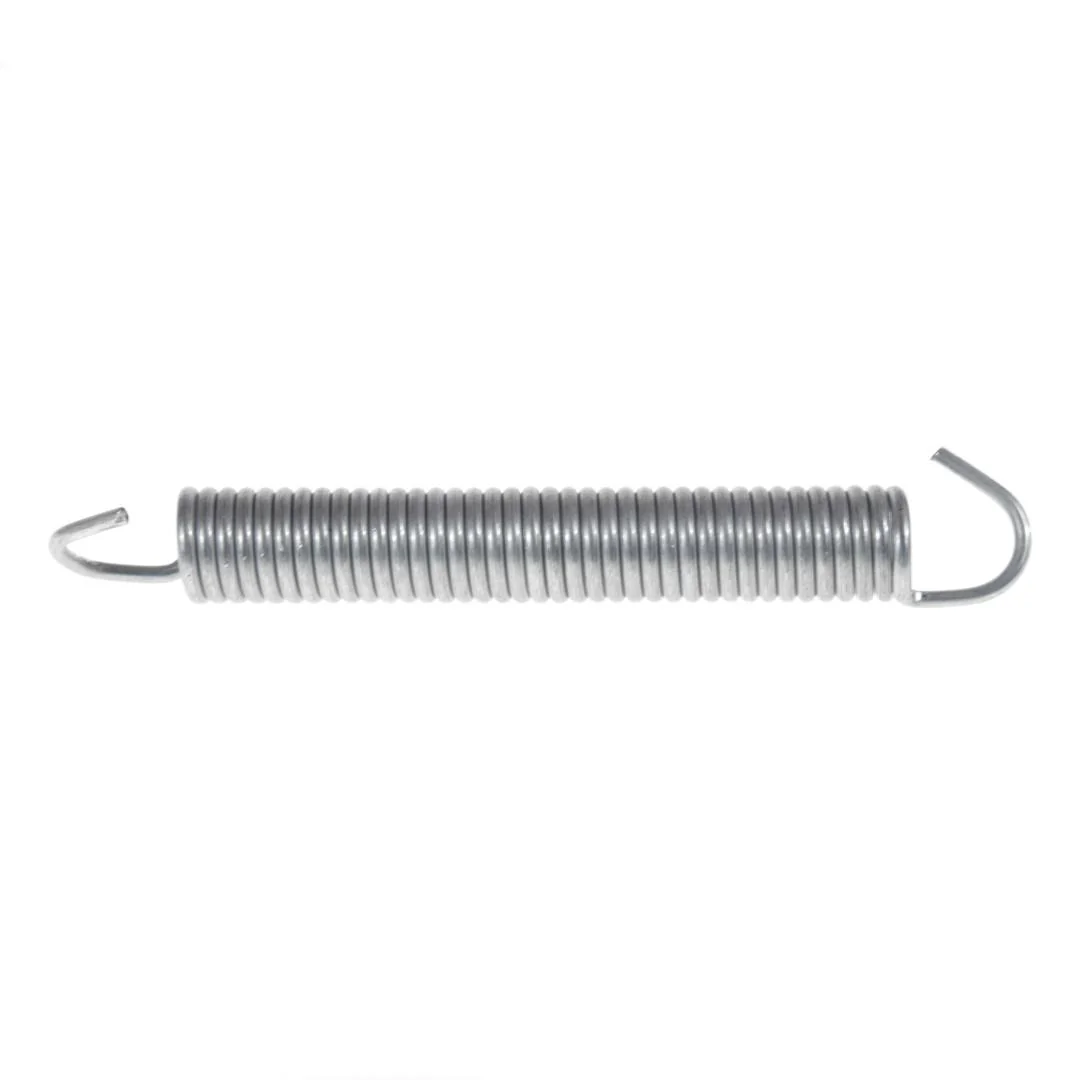

Monosem - MN30156026 - Coulter Spring 7259
Monosem - MN30156026 - Coulter Spring 7259
Monosem - MN30156026 - Coulter Spring 7259
Monosem - MN30156026 - Coulter Spring 7259
Monosem - MN30156026 - Coulter Spring 7259

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

Monosem - MN30156026 - Coulter Spring 7259

Monosem - MN30156026 - Coulter Spring 7259

€8.41

(Excl. VAT)

Price

(Excl. VAT)

€8.41

Product Description

This spring applies a controlled downward force to the seed coulter of a precision seeder, maintaining consistent soil penetration depth as the machine travels over uneven ground. It is installed between the coulter arm and the frame, where its tension keeps the coulter following the soil contour without bouncing. A spring that has lost its set tension or has taken a permanent set will cause shallow or inconsistent seed placement, leading to uneven emergence. This original component is wound to the same free length and coil count as the factory assembly, so the preload on the coulter arm matches the original design specification.
Monosem

Product Details

Brand
Monosem
Length
126 mm
Intended Use
Seeding technology
Product Type
Spring
Wire Diameter
3.5 mm
Inner Diameter
14 mm
Number Of Coils
38
Manufacturer
Monosem
