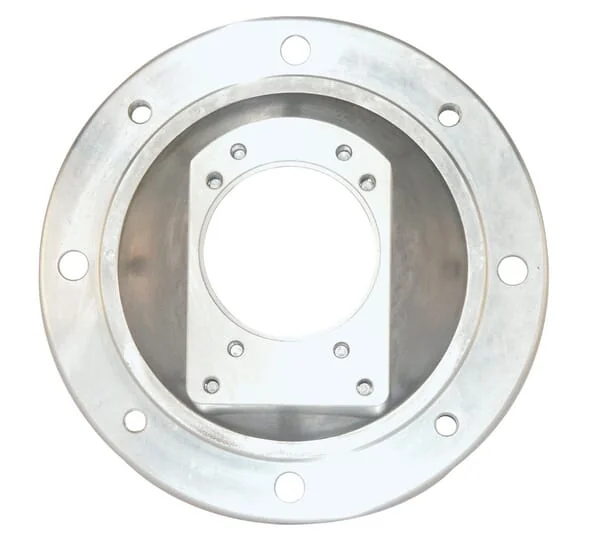

MP Filtri - L2142 - Bell Housing

SKU: mp-filtri-l2142

MP Filtri - L2142 - Bell Housing

€20.98

(excl. VAT)
RRP:€23.42
Save €2.44

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€20.98

Standard pump holders for gear pumps group 1,2,3, type L For gear pumps with rectangular flange and tapered shaft (European standard) For engines with a B5 flange Assortment : 0.22 to 22kW Cast aluminium Type 4E is equipped with a centring washer. The pump and motor combination is often mounted horizontally on top of the tank for convenient maintenance. Disassembling the pump is generally possible without removing the motor, the coupling half that is mounted on the pump fits through the hole of the bell housing. 4S type is designed without centring washer. The pump and motor combination is often mounted to the tank vertically, meaning that the pump is immersed in the reservoir In combination with elastic couplings type GE Temperature range : -30 °C to +80 °C
MP Filtri
MP Filtri was founded in 1964 in Milan, Italy, and has grown to become a global leader in hydraulic filtration. Headquartered in Pessano con Bornago, Italy, the company remains an independent entity, dedicated to developing innovative solutions for fluid power systems. Its commitment to research and development has positioned it at the forefront of filtration technology. The company specializes in a comprehensive range of hydraulic filters, including pressure filters, return filters, suction filters, and in-line filters. MP Filtri also offers a variety of accessories such as level gauges, filler breathers, and contamination control products. These components are crucial for maintaining the cleanliness and efficiency of hydraulic systems in diverse applications, from industrial machinery to mobile equipment. At Partao, you can find a wide selection of MP Filtri spare parts, including Hydraulic Filters, Air Filters, Bolts & Fasteners, Brackets & Supports, and Engine Gaskets. Over 628 genuine MP Filtri spare parts are available at Partao. Equipment operators across various sectors rely on MP Filtri for robust and effective filtration solutions. The brand's products are particularly valued in agricultural and construction machinery for their ability to protect sensitive hydraulic components from wear and contamination, ensuring reliable performance and extended service life in demanding environments.

Pros
No alignment of pump and motor required
Type
4E
Unit
Each
Flange
B14
Material
Die-cast aluminium
Extra info
Type 4E is equipped with a centring washer. The pump and motor combination is often mounted to the tank or machine horizontally for better and convenient maintenance. Disassembling the pump is generally possible without removing the motor, the coupling half that is mounted on the pump goes through the hole of the bell housing. Show more
Pump group
Gr 2; E (71,5 x 96)
Total width
95 mm
Designed for
The standard lantern rings are made of die-cast aluminium. The lantern rings are applicable for the pumps of the SATURN range and are suitable for powers between 0.25 and 22 kW. For motors with a B5 flange.
Flange width
13 mm
Lock diameter
36.5 mm
DInside diameter
95 mm

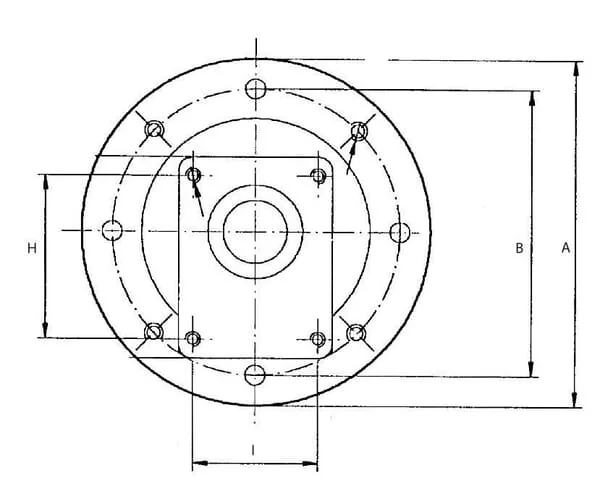

AOutside diameter
140 mm
Master model code
LMG141MFS2004E
BDiameter bolt circle
115 mm
Diameter of mounting hole
102 mm
HDistance mounting holes center to center long side
96.00 mm
IDistance mounting holes center to center short side
71.50 mm
Manufacturer
MP Filtri
