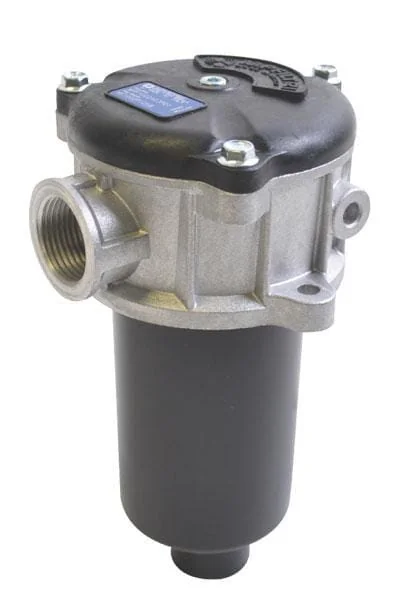

MP Filtri - MPF1002G3M25N - Return Filter
MP Filtri - MPF1002G3M25N - Return Filter
MP Filtri - MPF1002G3M25N - Return Filter
MP Filtri - MPF1002G3M25N - Return Filter
MP Filtri - MPF1002G3M25N - Return Filter
MP Filtri - MPF1002G3M25N - Return Filter
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

MP Filtri - MPF1002G3M25N - Return Filter

MP Filtri - MPF1002G3M25N - Return Filter

€57.91

(Excl. VAT)

Price

(Excl. VAT)

€57.91

Product Description

Tank assembly Filtering from the outside in Fitted with a bypass valve Aggregate filter Hydraulic systems Suitable for mineral oils up to ISO 2943 and synthetic fluids Available on request in a version suitable for aqueous emulsions, water and glycol Available on request with 3-bar bypass valve Available on request with NPT thread or SAE connection Viton seal available on request- The maximum volume flow rate for a complete return filter applies at a pressure loss ∆p = 0.5 bar and at a viscosity of 30 mm2/s (cSt).
MP Filtri
Mp-filtri produces hydraulic and fuel filtration systems for agricultural and construction machinery. The brand offers filters, separators, and breathers designed to protect engines and hydraulic systems from contamination. Its products are used in tractors, harvesters, and other heavy-duty equipment. Shop more than 628 genuine Mp-filtri spare parts.

Product Details

Brand
MP Filtri
Unit
Each
Bypass
Yes
Height
147 mm
Length
147 mm
Medium
Hydraulic oil
Includes
Excludes indicator / manometer
Filter finess
25 µm
Max flow rate
158 l/min
Filtration level
Nominal
Housing material
Aluminium
Outside diameter
88 mm
Pressure collapse
10 BAR
Filtration material
Metal
Max working pressure
8 BAR
Outlet port diameter
38 mm
Max working temperature
110 °C
Min working temperature
-25 °C
Outlet port thread diameter
1 Inch
Manufacturer
MP Filtri
