Attachments & Lift

Hydraulic Systems

Hydraulic Filters

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

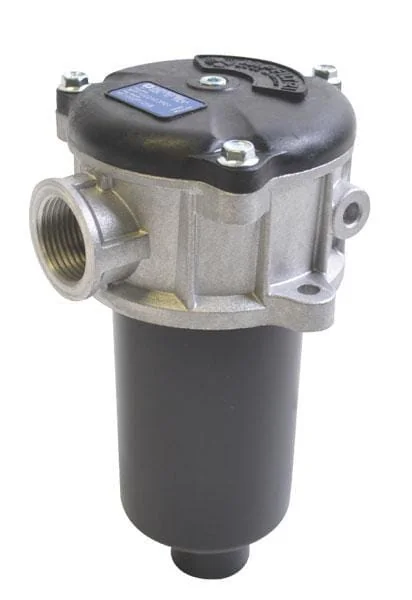

MP Filtri - MPF1003P10 - Return Filter 1"

MP Filtri - MPF1003P10 - Return Filter 1"

€42.94

(Excl. VAT)

Price

(Excl. VAT)

€42.94

Number of products

Product Description

Tank assembly Filtering from the outside in Fitted with a bypass valve Aggregate filter Hydraulic systems Suitable for mineral oils up to ISO 2943 and synthetic fluids Available on request in a version suitable for aqueous emulsions, water and glycol Available on request with 3-bar bypass valve Available on request with NPT thread or SAE connection Viton seal available on request- The maximum volume flow rate for a complete return filter applies at a pressure loss ∆p = 0.5 bar and at a viscosity of 30 mm2/s (cSt).

MP Filtri

Mp-filtri produces hydraulic and fuel filtration systems for agricultural and construction machinery. The brand offers filters, separators, and breathers designed to protect engines and hydraulic systems from contamination. Its products are used in tractors, harvesters, and other heavy-duty equipment. Shop more than 628 genuine Mp-filtri spare parts.

Product Details

Brand

Unit

Each

Bypass

Yes

Height

225 mm

Length

225 mm

Medium

Hydraulic oil

Includes

Excludes indicator / manometer

Filter finess

10 µm

Max flow rate

224 l/min

Filtration level

Nominal

Housing material

Aluminium

Outside diameter

88 mm

Pressure collapse

10 BAR

Filtration material

Paper

Max working pressure

8 BAR

Outlet port diameter

46,5 mm

Max working temperature

110 °C

Min working temperature

-25 °C

Outlet port thread diameter

1 Inch

Manufacturer

MP Filtri
