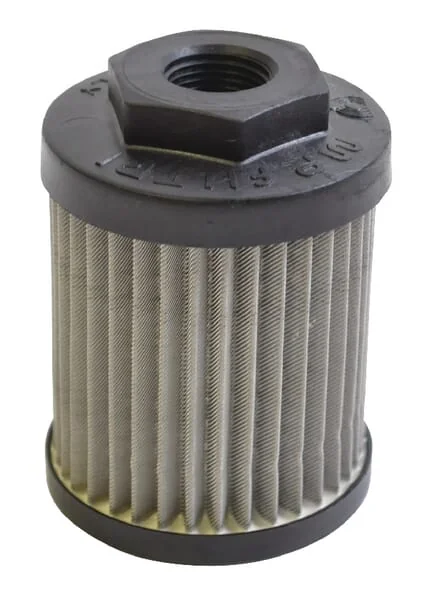

MP Filtri - STR1403M90 - Suction 140/3-32-S-M90 2"

SKU: mp-filtri-str1403m90

MP Filtri - STR1403M90 - Suction 140/3-32-S-M90 2"

€53.24€45.50 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€53.24

Brand
MP Filtri
Part Numbers
str1403m90
Pros
Easy to mount on the standpipe in the oil reservoir
Unit
Each
Bypass
No
Height
262 mm
Length
262 mm
Medium
Hydraulic oil
Sensor port
Yes
Filter finess
90 µm
Outside diameter
130 mm
Filtration material
Metal
Inlet port diameter
69 mm
Inlet port thread type
BSP
Max working temperature
100 °C
Min working temperature
-25 °C
Sensor port thread type
BSP
Inlet port thread length
15 mm
Inlet port thread diameter
2 Inch
Sensor port thread diameter
2 Inch
Manufacturer
MP Filtri

Protects pumps against coarse dirt Applicable for a rated flow up to 600 l/min For temperatures between -25° C to +100° C Available with or without bypass Front and back cover material: Nylon Interior material: Zinc-plated steel Filter medium material: metal wire mesh Filtering from the outside (OUT) in (IN) Drop in pressure for the specified bore and new filter: 0.02 bar Screw mounting (BSP female thread), NPT thread available on request
MP Filtri
Mp-filtri produces hydraulic and fuel filtration systems for agricultural and construction machinery. The brand offers filters, separators, and breathers designed to protect engines and hydraulic systems from contamination. Its products are used in tractors, harvesters, and other heavy-duty equipment. Shop more than 631 genuine Mp-filtri spare parts.
