MZ - ARZO0100200000 - Knife Gate Valve 8"
MZ - ARZO0100200000 - Knife Gate Valve 8"
MZ - ARZO0100200000 - Knife Gate Valve 8"
MZ - ARZO0100200000 - Knife Gate Valve 8"

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

MZ - ARZO0100200000 - Knife Gate Valve 8"

MZ - ARZO0100200000 - Knife Gate Valve 8"

€589.66

(Excl. VAT)

Price

(Excl. VAT)

€589.66

MZ
Mz is a manufacturer of agricultural machinery, specializing in equipment for soil preparation and cultivation. The brand produces plows, harrows, and other tillage implements for efficient field work. Its products are designed for durability and performance in diverse soil conditions. Shop more than 592 genuine Mz spare parts.

Product Details

Brand
MZ
Unit
Each
Properties
Blockage-free cut-off valve Upper plastic cover protects against moving parts Painted cast iron lower housing with stainless steel gate valve and bolts To install exclusively in the flow direction Without discharge
Water tight
Yes

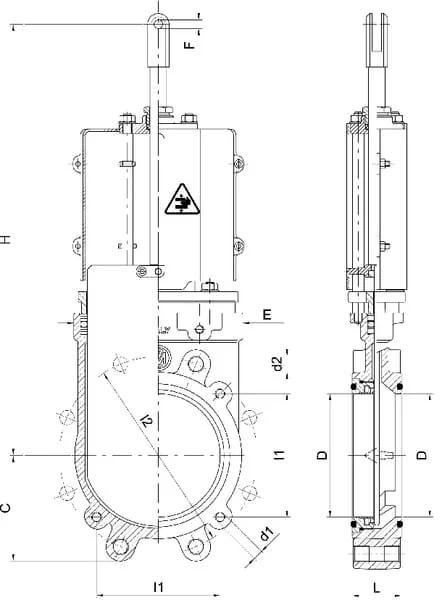

ETotal width
273,5 mm
Gate material
Stainless steel
Technical info
Cylinder connection:M18x1.5
Connection type
Double flanged
Housing material
Cast iron
LFlange thickness
60 mm
Flow direction type
Uni-directional
Max working pressure
8 BAR
Type of drive/steering
Hand lever
DPassage hole nominal diameter
8 Inch
FCylinder conection hole diameter
10,5 mm
l1Flange mounting bolts/holes distance
180 mm
CPassage hole centre to bottom distance
158 mm
hLever mounting holes distance (vertical)
90 mm
d1Flange mounting bolts/holes thread diameter
M12
l2Flange mounting bolts/holes circle diameter
295 mm
HPassage hole centre to lever hole vertical distance
611 mm
Manufacturer
MZ

Similar items you might like

  • MZ

    MZ - ARZO0100200551 - Knife Gate Valve 6" (HYDR)

    MZ

    €725.72

  • MZ

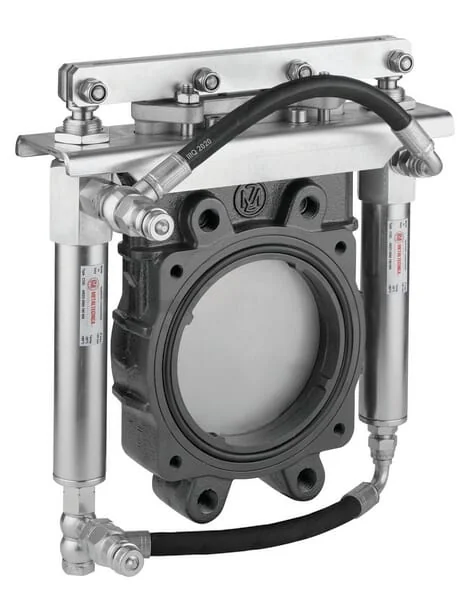

    MZ - ARZO0101100560 - Compact Knife Valve 4" HYDR

    MZ

    €674.44

  • MZ

    MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)

    MZ

    €759.48

  • MZ

    MZ - ARZO0101150560 - Compact Knife Valve 5" HYDR

    MZ

    €808.01

  • MZ

    MZ - ARZO0101150561 - Compact Knife Valve 5" (PNEU)

    MZ

    €871.42

  • MZ

    MZ - ARZO0101200560 - Compact Knife Valve 6" HYDR

    MZ

    €887.95

  • MZ

    MZ - ARZO0101200561 - Compact Knife Valve 6" (PNEU)

    MZ

    €1,031.81

  • MZ

    MZ - ARZO0102100000 - Knife Gate Valve 4" With Hand Wheel

    MZ

    €396.98

  • MZ

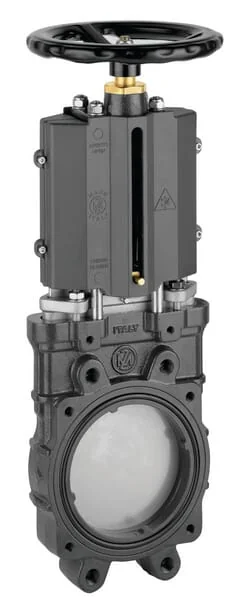

    MZ - ARZO0102150000 - Knife Gate Valve 6" With Hand Wheel
