Non Branded - OF1100CDN100 - Flow Meter Slurry 4"

SKU: non-branded-of1100cdn100

Non Branded - OF1100CDN100 - Flow Meter Slurry 4"

€4,299.56€3,674.84 (Excl. VAT)

RRP:€5,518.55
Save €1,219.05

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,299.56

Brand
Non Branded
Unit
Each
Benefits
Maintenance-free Very versatile Very long service life
Properties

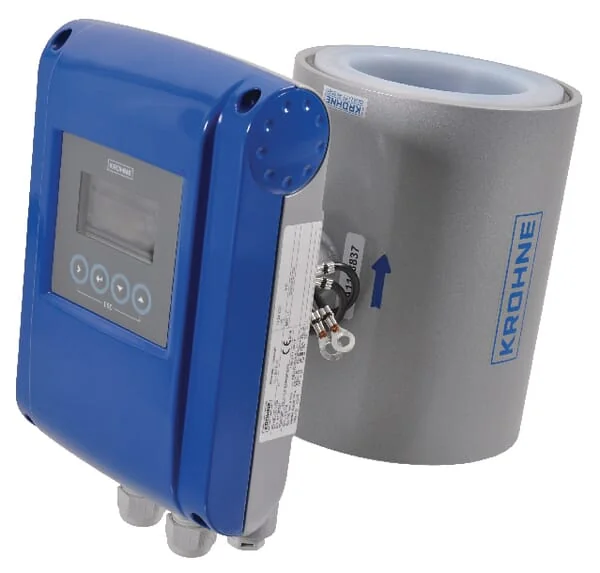

The Optiflux 1000 with the IFC100 amplifier is an inductive flowmeter without moving parts. The flowmeter measures the flow using a generated magnetic field and the conductance of the liquid The IFC100 amplifier can be set up in different ways, e.g. for direct current or voltage output signal
Consists of
Optiflux 1000 flowmeter IFC100 amplifier Without flange!
Technical info
Measuring principle: Faraday's Law Primary measuring value: flow speed Secondary measuring values: flow volume, flow mass, electrical conductance, coil temperature Measuring range: -12 to +12 m/s (-40 to +40 ft/s) Temperature of the medium to be measured: -40 to +180 C Ambient temperature: -40 to +65°C Calibration in accordance with EN17025
Application range
Liquid manure dosing system Other conductive liquids
Manufacturer
Non Branded

Not suitable for oil or fuel Installation behind the three-way valve A distance corresponding to 5 times the diameter in front of the flow meter and 2 times the diameter behind the flow meter must be absolutely horizontal in order to prevent turbulence
