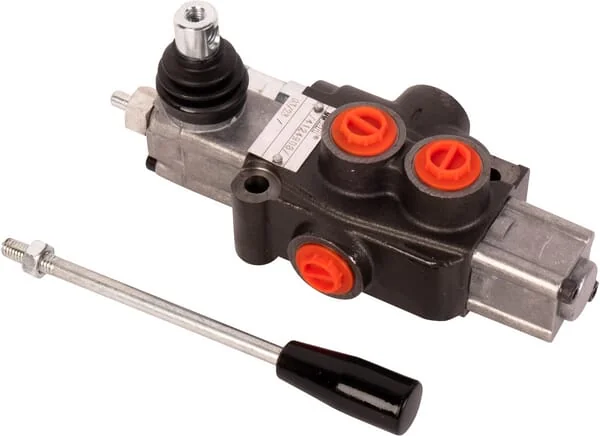

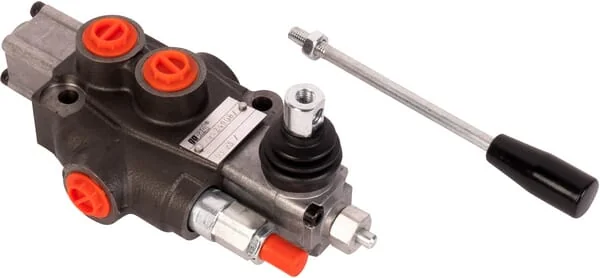

Non Branded - P35U17KZ1TG - Log Splitter Valve 3/8"

SKU: non-branded-p35u17kz1tg

Non Branded - P35U17KZ1TG - Log Splitter Valve 3/8"

€71.76

(excl. VAT)
RRP:€87.39
Save €15.63

In stock - ready to ship

Ships within 78 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€71.76

Operation of the four functions : Position 1: The cylinder, which you have equipped with a mechanical stopper, automatically retracts until it taps the push button on the valve, causing it to switch to neutral position 0. Position 2: The cylinder goes out quickly (differential), the oil from the rod side is added to the bottom side. Position 3: The cylinder slides out with the pump flow and maximum power. Position 0: Neutral position (suitable for open centre system)
Non Branded

Brand
Non-Branded
Type
Self closing valve
Unit
Each
Includes
Valve with push button Control lever The end stop/bracket on the cylinder is not a standard item, you will need to make this part yourself
Flow rate
35 l/min
Total height
86 mm
Total length
203,3 mm
Handle length
147 mm
Housing width
55 mm
Housing height
86 mm
Housing length
90,5 mm
Connection type
Thread
Number of ports
4
Housing material
Cast iron
Sealing material
Nitrile rubber [NBR]
Number of positions
3
Max working pressure
250 BAR
Connection thread type
BSP
Max working temperature
60 °C
Min working temperature
-40 °C
Switchable under pressure
Yes
Connection thread diameter
3/8 Inch
Connection type - male/female
Female
Manufacturer
Non-Branded
