Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a
Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a
Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a
Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a
Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a

Nord Lock - NL24P100 - Lock Washer M24x39x34mm, Glued, Galvanized DIN 128a

€4.30

(Excl. VAT)

Price

(Excl. VAT)

€4.30

Product Description

Unique WIG-effect on the inside Easy assembly, including owing to bonded thread Reusable
Nord Lock

Product Details

Brand
Nord-Lock
Unit
Each
Details
Unique WIG-effect on the inside Easy assembly, including owing to bonded thread Reusable
Benefits
Prevents detachment due to vibration User friendly Economical
Material
Steel
Thickness
3,4 mm
Properties

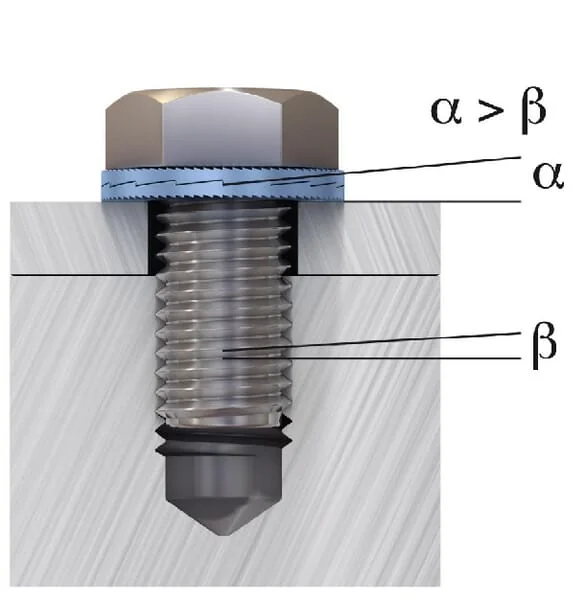

The toothed outside is pushed into the material The tilt angle of the wedge surfaces is greater than the tilt angle of the screw thread Securing function retained during lubrication Very well secured both at low and high pre-load Pre-load remains controllable
DIN Standard
128a
Qty. Rounding
100
Technical info
The material to be secured must not be harder than the rings
dInside diameter
25,3 mm
Application range
In extreme vibrations With dynamic loads
Surface treatment
Coated
d1Outside diameter
39 mm
Designed for thread
M24
Weight per 100 pieces
0,3 KG
Manufacturer
Nord-Lock
