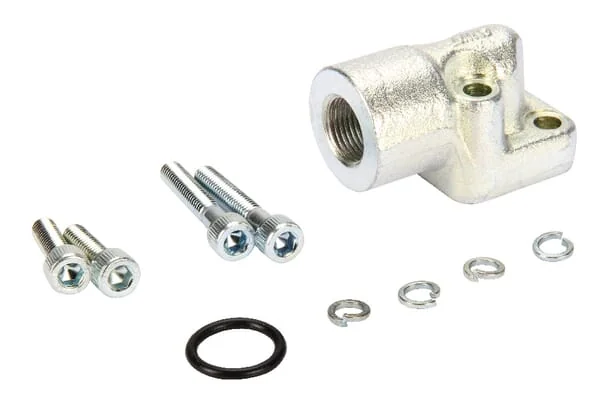

Omt - 1G06 - OMT Flange Elbow 3/8
SKU: omt-1g06
€10.93€9.34 (Excl. VAT)
In stock - ready to ship
Order now for shipping within 2 to 4 business days
Shipping fee: €9.99 incl. VAT
Pay Securely with
Omt - 1G06 - OMT Flange Elbow 3/8
€10.93
Price
€10.93
Product Details
Brand
Part Numbers
1G06
Unit
Set
Bolts
M6 x 16
O-ring
15.88 x 2.62 mm
BHeight
33 mm
Includes
Flange Bolts O-ring
Material
Cast iron
Designed for
Flanges for various pumps and motors
GThickness 2
17 mm
PSAE diameter
3/8 Inch
Product details
Maximum operating pressure : 300 bar O-ring : 90 shore Connection flanges for gear pumps and motors
DInside diameter
13 mm
COutside diameter
46 mm
Max working pressure
300 BAR
Flange mounting holes number
3
Mounting holes thread diameter
M6
AFlange mounting holes distance
30 mm
FFlange mounting holes distance 2
27 mm
Manufacturer
OMT
