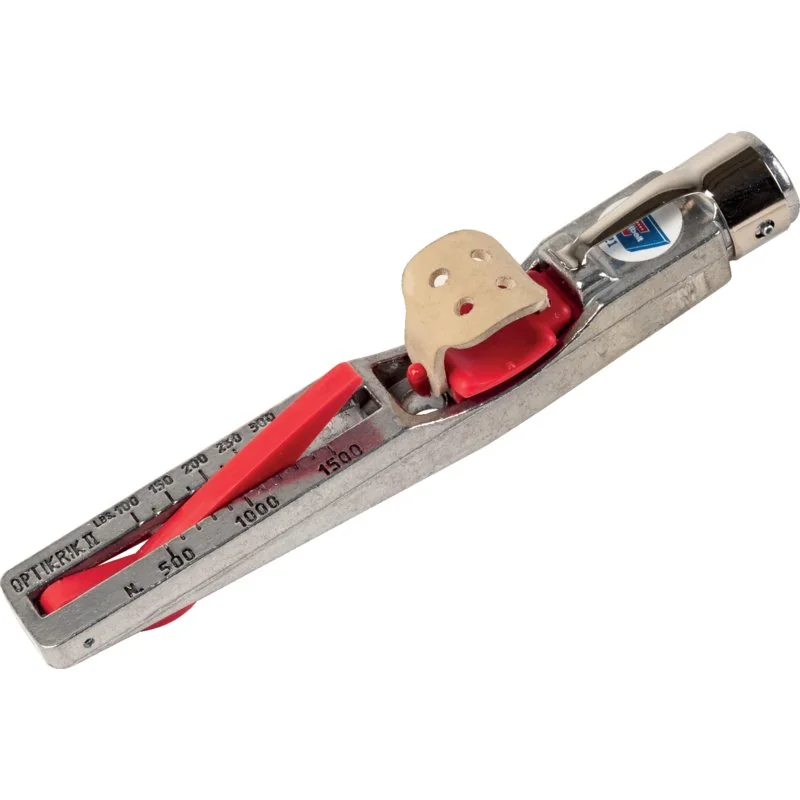

Optibelt - 3100 - Pre-tension measuring device

TENSION MEASURING DEVICE OPTIBELT OPTIKRIK 3 Measuring range: 1300 to 3100 N This simplified method of measuring the tension force is intended to facilitate the maintenance of drives for the technician when the most important technical data are not known and the optimal tension therefore cannot be calculated. The measuring device can also be used to set the tension when the optimal tension has been calculated according to known technical data. Measurement procedure: Determine the profile of your drive belt Measure the smaller pulley diameter in the drive system From a table, you can read the corresponding strand force Check strand force with Optikrik according to the operating instructions
