PCE - 210336 - Other Electrical Components

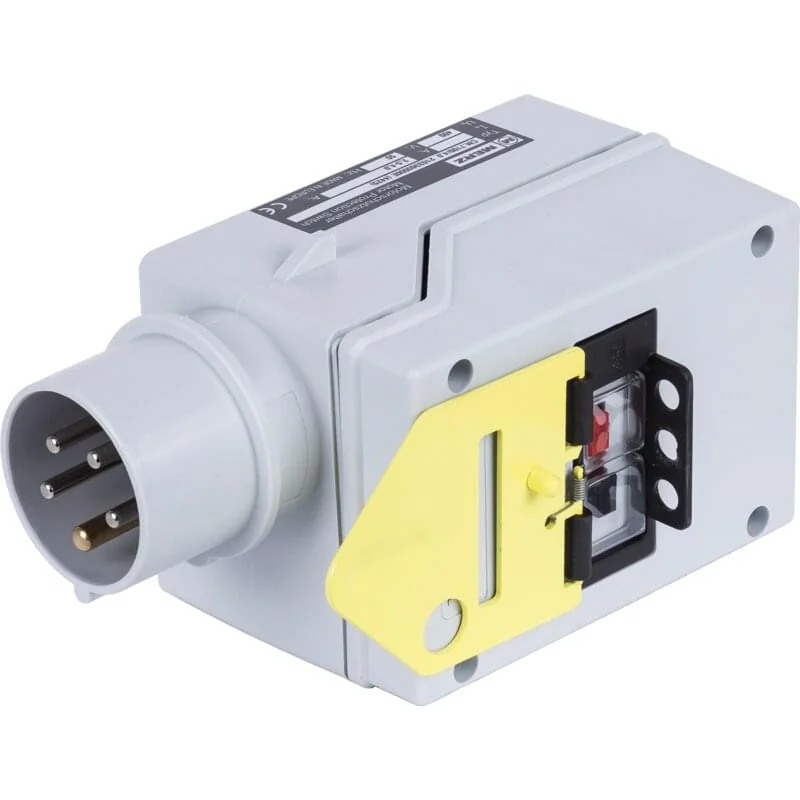

Surface-mounted appliance plug with phase inverter CEE 16A 5p 400V with motor protection. Housing: ISO housing with pre-embossing for drillings 68x68 or 80x80mm 400V 50Hz, undervoltage release with padlock interlock. Adjustment range: 2,4A - 4,0A Degree of protection: IP44 Particularly suitable for direct mounting on the motor terminal surface (without N-terminal). Overload release current setting: 2,5 – 4,0 A With thermal overload protection Release technology: thermomagnetic Measuring operational voltage: 400 – 400 V Rated continuous current Iu: 16 A Connection type main circuit: Screw connection Design of the actuating element: Push button Complete device in housing With integrated auxiliary switch With integrated undervoltage release Number of poles: 5 Degree of protection (IP): IP44
