Phoenix Contact - SACCM12FS5PLM - Connector

SKU: phoenix-contact-saccm12fs5plm

Phoenix Contact - SACCM12FS5PLM - Connector

€21.47€18.35 (Excl. VAT)

RRP:€24.27
Save €2.80

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€21.47

Part Number
SACCM12FS5PLM
OEM Part Numbers

Phoenix Contact

Package length (mm)
145
Package width (mm)
50
Package height (mm)
20
Pros
Thanks to the push-in connection technology, it can be connected easily and without tools. Connect flexible cores comfortably thanks to the lever. Fast and reliable connection of electrical cabling.
Type
Push-in clamp connection
Unit
Each
Screened
No
Contact type
Bus
Voltage type
DC AC
Rated voltage
48 V
Poles material
Nickel
Nominal voltage
48 V60 V
Number of poles
5
Type of housing
Straight
Pollution degree
3
Rated current In
4 A
Diameter connector
19 mm
Max cable diameter
8 mm
Min cable diameter
4 mm
Ambient temperature
85-85 °C
Protection class IP
67
Protective conductor
No
Over voltage category
II
With status indication
No
Manufacturer Product ID
1424652
Max working temperature
85 °C
Min working temperature
-40 °C
Number of data contacts
0
For cable outer diameter
4-8 mm
Number of power contacts
0
Number of control contacts
5
Material of contact surface
Nickel
Min. number of insertion cycles
100
Cable position type - connection no 1
Straight
Connection type male/female - connection no 1
Female
Connectable conductor cross section solid-core
0.75-0.75 mm²
Inflammability class of insulation material according to with UL94
V0
EAN
4055626374994
Manufacturer

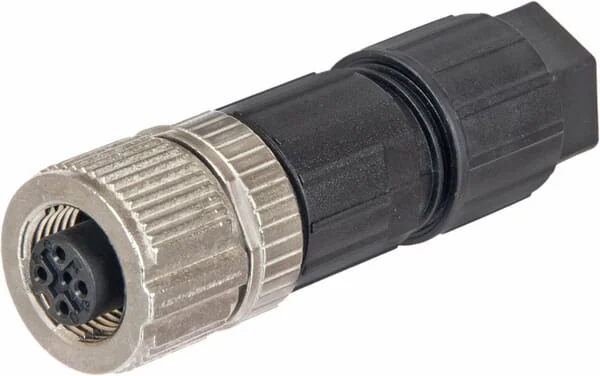

This genuine Phoenix Contact SACC-M12FS-5PL M (Order No. 1413867) is a high-quality M12 female 5-position straight sensor/actuator connector. Designed for robust industrial automation applications, it features a shielded, molded construction with a durable knurled nut. The connector is supplied with a 0.5 meter TPE litz wire cable, consisting of 5 x 0.25 mm² conductors, ensuring reliable signal transmission. With an IP67 degree of protection, it offers excellent resistance against dust and water ingress, making it suitable for demanding environments. It is A-coded, rated for 48V and 4A, and operates within a temperature range of -25 to 90 °C.
Phoenix Contact
Phoenix Contact is a global manufacturer of industrial automation, interconnection, and interface solutions. The company was founded in 1923 in Essen, Germany, by Hugo Knümann, initially as a commercial agency for industrial products. Its headquarters are now located in Blomberg, Germany. Over the decades, Phoenix Contact has grown into a leading provider of components and systems for electrical engineering and electronics. Phoenix Contact offers a broad portfolio of products, including terminal blocks, connectors, signal conditioners, power supplies, industrial PCs, and controllers. The brand is known for its innovative solutions in areas such as device and PCB connection technology, industrial components for electrical installations, and interface technology. These products are designed for reliability and performance in demanding industrial environments, including those found in agricultural machinery. At Partao, you can find a comprehensive selection of Phoenix Contact components. Our top categories for this brand include Control Modules, Fuses & Relays, Hand Tools, Other Electrical Components, and Other Sensors. Industrial operators and agricultural professionals often choose Phoenix Contact for its robust and dependable electrical and electronic components. The brand's products are widely utilized in control cabinets, sensor systems, and power distribution units within various types of machinery, ensuring stable operation and efficient data transmission in challenging field conditions. Shop more than 515 genuine Phoenix Contact spare parts.
