Prevost - CSM081151 - Prevost Safety quick-connect external thread BSP1/4" - 3660058176958

SKU: prevost-csm081151

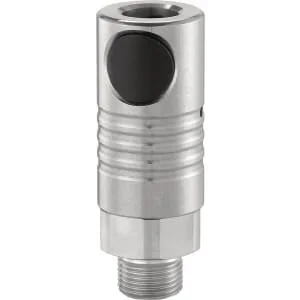

Prevost - CSM081151 - Prevost Safety Quick-Connect External Thread BSP1/4"

€120.35€102.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€120.35

Brand
prevost
Part Numbers
3660058176958; CSM081151
Fluid
Compressed air
Length mm
54
Weight kg
0.06
Diameter mm
24
Hex size mm
19
Body material
Composite
Coupling type
Safety
Seal material
NBR
Valve material
Brass
Connection size
1/4
Connection type
BSPP male thread
Spring material
Stainless steel
Coupling profile
Standard
Operating pressure max bar
12
Operating pressure min bar
2
Flow rate at 6 bar L per min
1820
Operating temperature max celsius
70
Operating temperature min celsius
-15
Manufacturer
prevost
EAN
3660058176958

The Prevost CSM081151 is a genuine Prevost safety quick coupling designed for compressed air applications. Featuring a standard profile and a 1/4" BSPP male thread connection, this robust coupling is constructed with a composite body, brass valve, stainless steel spring, and NBR seals. It operates efficiently within a temperature range of -15°C to +70°C and handles pressures from 2 to 12 bar, delivering a flow rate of 1820 L/min at 6 bar.
