Prillinger - 00136604 - Other Electrical Components

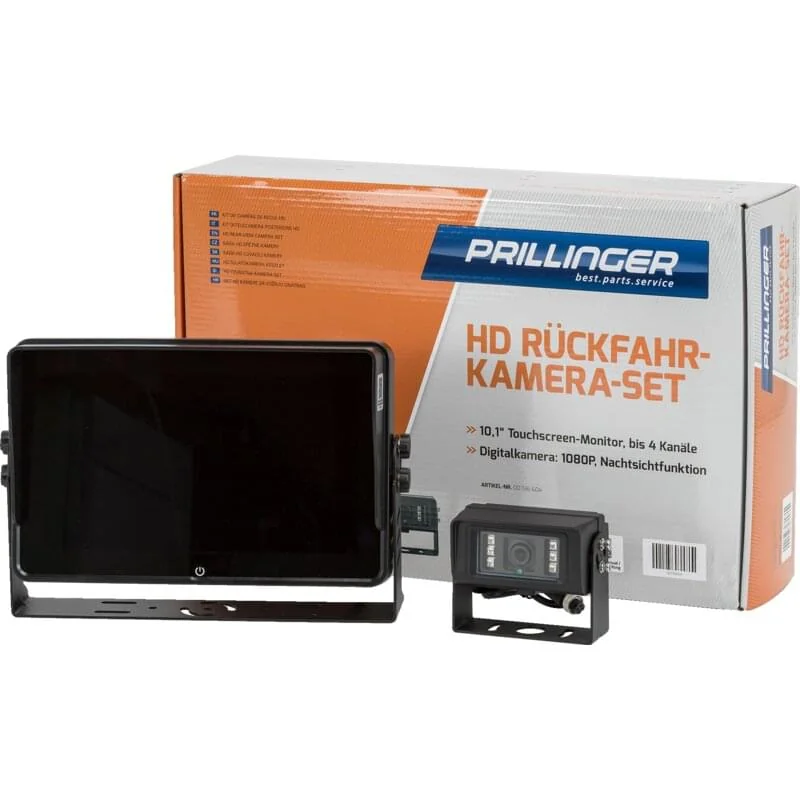

Product Description: HD DVR Touchscreen Monitor Full screen bonding process: The monitor's protective glass panel, touchscreen, and display screen feature a space-saving, fully bonded process structure that eliminates specular reflections, ensuring a clear and transparent screen. Display Screen: 10,1-inch IPS screen with fast response speed, wide viewing angle, true colors, 1024 x 600 resolution, graphical menu for easy and quick operation. DVR: Real-time recording and playback function, supports 16–512 GB TF cards (Standard 64 G). Video Input: supports up to 4 video inputs. Display Modes: 1/2/3/4-screen split. Power Supply and Protection: Functions in a wide voltage range of DC11-32 V. Features include pulse voltage protection against load interruption, reverse polarity protection for external power supply, and LED constant current and voltage protection to prevent misuse and ensure a long service life. Summary: Due to the high concentration required by vehicle and machine operators, they often do not have time to constantly monitor the vehicle's reversing monitor screen. This is especially true in situations where no reversing radar warning system is installed. During vehicle operation, safety risks for personnel and thus economic losses can easily occur. The HD Quad Monitor Reversing Camera System not only eliminates the complex wiring and installation of a reversing radar, but also allows the 4-channel HD camera to detect people in the monitoring area in real time. The all-round monitoring screen is displayed on the monitor to remind the driver, thereby improving vehicle operation efficiency, eliminating safety risks, and avoiding economic losses. The monitor supports functions for recording, playback, and displaying the safety distance. Product Parameters: Waterproof HD LCD Monitor Color Monitor Screen: 10,1-inch IPS screen Resolution: 1024 (RGB) 600 Video Input: 4 channels (1080P/960P/720P/CVBS) with mixed signal input Screen Modes: 1/2/3/4-screen split OSD Menu Functions: Mirror/Normal settings, reverse delay time, trigger priority, multi-language support Video System: PAL/NTSC (AUTO) Brightness (cd/m2): 600, Automatic adjustment to ambient light Response Time (Ms): 25 Video Recording Format: AVI Video Recording Capacity: Supports 16–512 GB TF cards (Standard 64 G) Recording Resolution: 1080P/720P/480P Load Dump: DC24+174V/350ms Working Temperature: -20 to +70 Storage Temperature: -30 to +80 Operating Voltage: DC 11 - 32 V Dimension (LxWxD): 218 x 168 x 37 mm Waterproof HD Camera Image Sensor: 1/2.8 Color Sony Effective Pixels: 1920 x 1080 Resolution: 1080P Visible Angle: 130° Infrared Distance: 5 Meter (6 integrated 850 nm infrared lights) Protection Class: IP69K Operating Voltage: DC12V 10% (power supply via the monitor) Working Temperature: -20 to +60 Storage Temperature: -30 to +70 Vibration Class: GB T 2423.56-2018-Standard (random 5G-Vibration) Dimension:70,5 (W) x 118,5 (H) x 76 (D) mm HD Video Signal Cable Interface: 4-pin aviation plug (male-female) Length: 15 Meter
