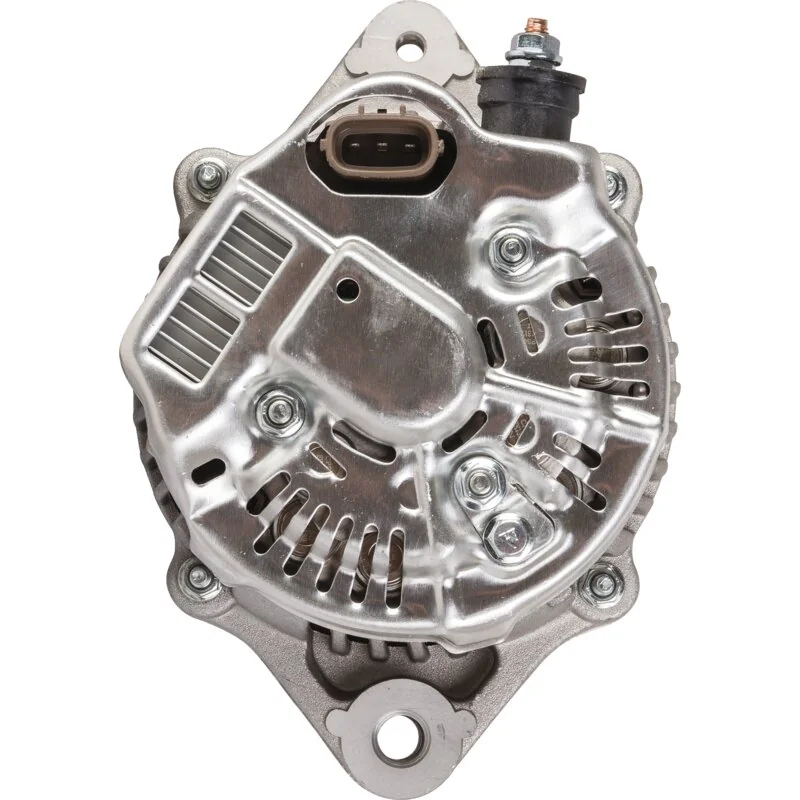

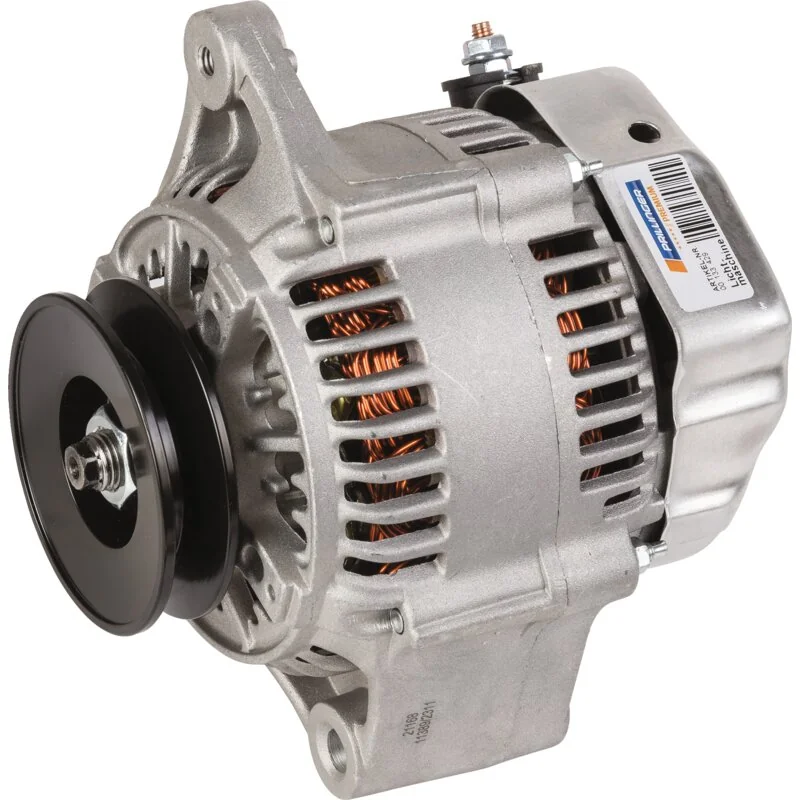

Prillinger Premium - 00133429 - Alternator

SKU: prillinger-premium-00133429

Browse all parts
Prillinger Premium - 00133429 - Alternator

€194.70€166.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Trustpilot

Price

€194.70

Brand
Prillinger Premium
Type
1
Angle (°)
0
Current (A)
80
Length (mm)
58
Voltage (V)
14
V-Belt Width
12,7 mm
W-Connection
Ja
Connection Type
3 poliger Kompaktstecker und B plus Anschluss M6
Connection Thread
M8
Hole Spacing (mm)
165
Inner Diameter (mm)
10.5
Pulley Diameter (mm)
81
Manufacturer
Prillinger Premium

IMPORTANT NOTE! Before all work on electrical components, these must be de-energized. This means: First disconnect the ground cable (-) of the battery, then disconnect the positive cable (+). The alternator (generator) shaft must always be fixed with a suitable counter-holder (hexagon socket or multi-tooth) and the pulley nut tightened with a torque wrench (do not use an impact wrench). For some pulleys, it is necessary to add shims to properly press the bearing into its seat. Tightening torque: M16 x 1,5 95Nm +/- 5Nm. M27 x 1,5 152Nm +/- 17,5Nm
Prillinger Premium

Be the first to write a review!
