Rexnord - KE11434 - Roller Chain 1.1/4x3/4

OEM Supplier

SKU: rexnord-ke11434

Rexnord - KE11434 - Roller Chain 1.1/4x3/4

€48.49

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€48.49

Rexnord
Rexnord manufactures power transmission and motion control solutions for agricultural machinery. The brand provides durable bearings, couplings, and gears used in tractors and harvesting equipment. Its products are designed for high-load applications in demanding farming environments. Shop more than 348 genuine Rexnord spare parts.

Brand
Rexnord
Part Numbers
ke11434
Type
Simplex
Unit
Metre

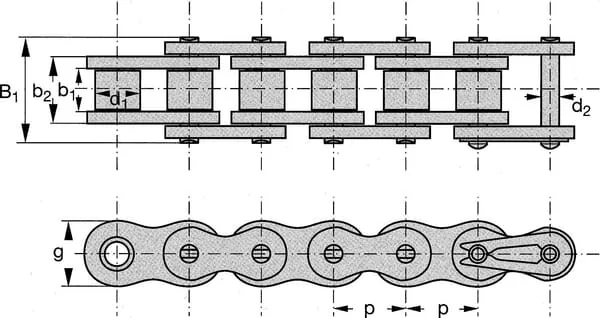

Pitch
1-1/4 Inch
Weight
3,7 kg/m
pPitch
31,75 mm
Details
RexPro roller chain Manufactured to European standard
gHeight
25,7 mm
Benefits
Wide range of applications Corresponding sprockets easily available
Properties
Starts and ends with an inner link.
DIN standard
8187
Width inside
3/4 Inch
Qty. Rounding
0.01
Size code ISO
20 B-1
Width outside
40,4 mm
Technical info
Chains up to a pitch of 1 inch: available in lengths of 5 metres Chains with a pitch of over 1 inch: available by the metre (max 5 m)
b1Width inside
19,56 mm
d2Pin diameter
10,19 mm
Product category
Roller chain
Application range
Drive chain for chain power transmissions Chain conveyors Seedbed tillers Sugarbeet harvesters
d1Roller diameter
19,05 mm
b2Width inner link
29 mm
Bearing working surface
2,96 cm²
Min. breaking load according to standard
95000 N
Manufacturer
Rexnord
