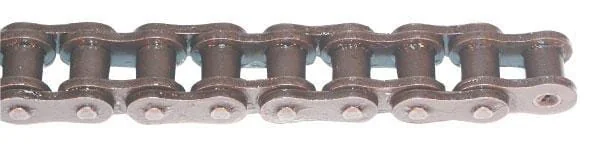

Rexnord - KE120H - Roller Chain ASA 120 H

OEM Supplier

SKU: rexnord-ke120h

Rexnord - KE120H - Roller Chain ASA 120 H

€100.04

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€100.04

Rexnord
Rexnord manufactures power transmission and motion control solutions for agricultural machinery. The brand provides durable bearings, couplings, and gears used in tractors and harvesting equipment. Its products are designed for high-load applications in demanding farming environments. Shop more than 348 genuine Rexnord spare parts.

Brand
Rexnord
Part Numbers
ke120h
Type
Simplex
Unit
Metre
Weight
6,4 kg/m
pPitch
1-1/2 Inch
Details
Thicker links
gHeight
34,4 mm
Benefits
Wear resistant
Properties
Starts and ends with an inner link.
LPin length
53 mm
DIN standard
8188
Max. loading
12,7 t
Qty. Rounding
0.01
Size code ASA
120 H
Size code ISO
24 AH-1
Technical info
Chains up to a pitch of 1 inch: available in lengths of 5 metres Chains with a pitch of over 1 inch: available by the metre (max 5 m)
b1Width inside
25,22 mm
d2Pin diameter
11,1 mm
Product category
Roller chain
Width inner link
37 mm
Application range
Chain drive with regular impact loads
d1Roller diameter
22,23 mm
SThickness outer plate
5,5 mm
Bearing working surface
4,12 cm²
Min. breaking load according to standard
127000 N
Manufacturer
Rexnord
