Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Ringfeder - RFN406124 - Shrink Disk

Ringfeder - RFN406124 - Shrink Disk

€43.83

(Excl. VAT)

Price

(Excl. VAT)

€43.83

Number of products

Product Details

Brand

X

- mm

D1

- mm

L4

- mm

Unit

Each

LLength

22.5 mm

L1Length L1

19 mm

L2Length L2

8 mm

L3Length L3

15 mm

Number of bolts

6

DOutside diameter

50 mm

d1Inside diameter

36 mm

TA (Locking torque)

5 N·m

Dg (Clamping thread)

M5

dDiameter shaft max.

24 mm

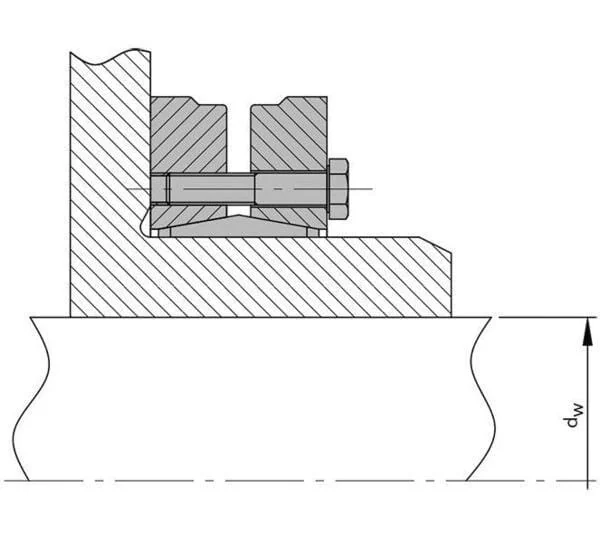

dw solid shaft diameter

19 mm

pN (Hub pressure at given TA)

- N/mm²

pW (Shaft pressure at given TA)

336 N/mm²

F ax (Transmissible axial force)

32 kN

T (Transmissible tork at given TA)

240 N·m

Tmax (Maximum transmissible torque

300 N·m

Minimum required outside hub diameter at Rp0,2=200 N/mm²

- mm

Minimum required outside hub diameter at Rp0,2=300 N/mm²

- mm

Minimum required outside hub diameter at Rp0,2=400 N/mm²

- mm

Manufacturer

Ringfeder
